(90.160.040) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB

Запчасти Case IH JX95HC PLUS (90.160.040) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

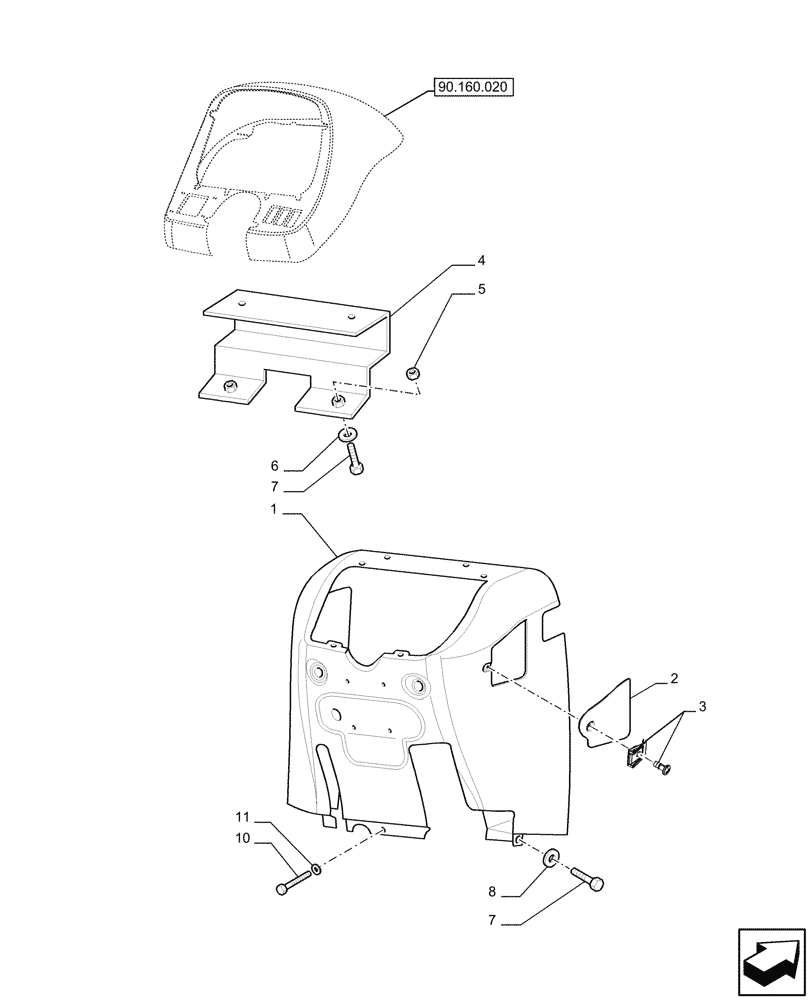

Схема запчастей Case IH JX95HC PLUS - (90.160.040) - STD + VAR - 391606 - INSTRUMENT PANEL, FRONT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.160.020
8
7
10
7
4
1
6
5
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84236283

SEPARATOR HOOD

Red

1шт.

2

84242163

SEPARATOR HOOD

1шт.

3

5174673

FASTENER,12mm OD

1шт.

4

5090447

BRACKET

1шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

6

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

7

14238130

SCREW,M8

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

9

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.
