(90.160.160) - STD + VAR - 391606 - MUDGUARD & FOOTBOARD

Запчасти Case IH JX95HC PLUS (90.160.160) - STD + VAR - 391606 - MUDGUARD & FOOTBOARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

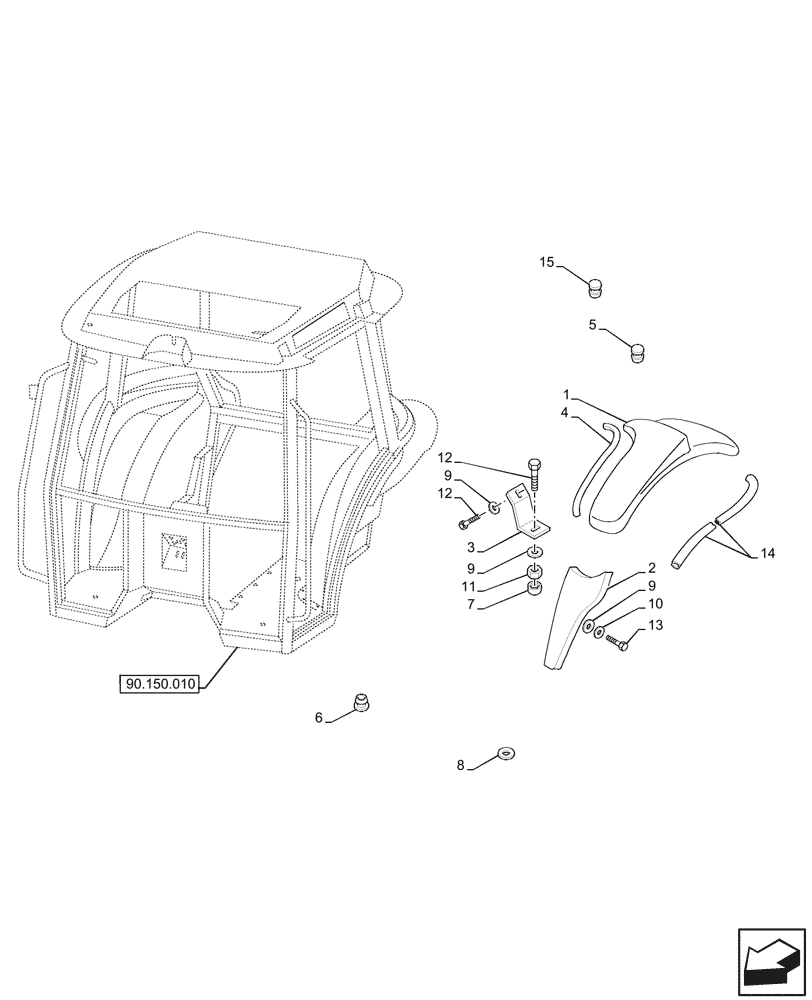

Схема запчастей Case IH JX95HC PLUS - (90.160.160) - STD + VAR - 391606 - MUDGUARD & FOOTBOARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
12
8
12
14
2
10
9
3
6
1
9
4
5
11
9
90.150.010
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5093580

FENDER

RH

1шт.

1

5093581

FENDER

LH

1шт.

2

5093469

FENDER EXTENSION

RH

1шт.

2

5093470

FENDER EXTENSION

LH

1шт.

3

5094450

SUPPORT

LH

1шт.

3

5094449

BRACKET

RH

1шт.

4

5094451

SEAL

2шт.

5

5094079

PLUG,Dome Head

D=11

4шт.

6

5094071

PLUG

D=22

2шт.

7

5089481

CAP,17mm OD

8шт.

8

5094452

SEALING WASHER

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8.4mm ID x 17mm OD x 1.6mm Thk

28шт.

10

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

16шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

Hex, M8, 6.80mm, Cl 8, ZND

10шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

13

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

10шт.

14

5093471

TRIM,2250mm L

2250mm L

2шт.

15

5093850

PLUG,9mm OD

9mm OD D=9

6шт.
