(18.110.020) - STD + VAR - 335113, 390110 - CLUTCH MECHANISM, BEARING CARRIER

Запчасти Case IH JX95HC PLUS (18.110.020) - STD + VAR - 335113, 390110 - CLUTCH MECHANISM, BEARING CARRIER (18) - CLUTCH

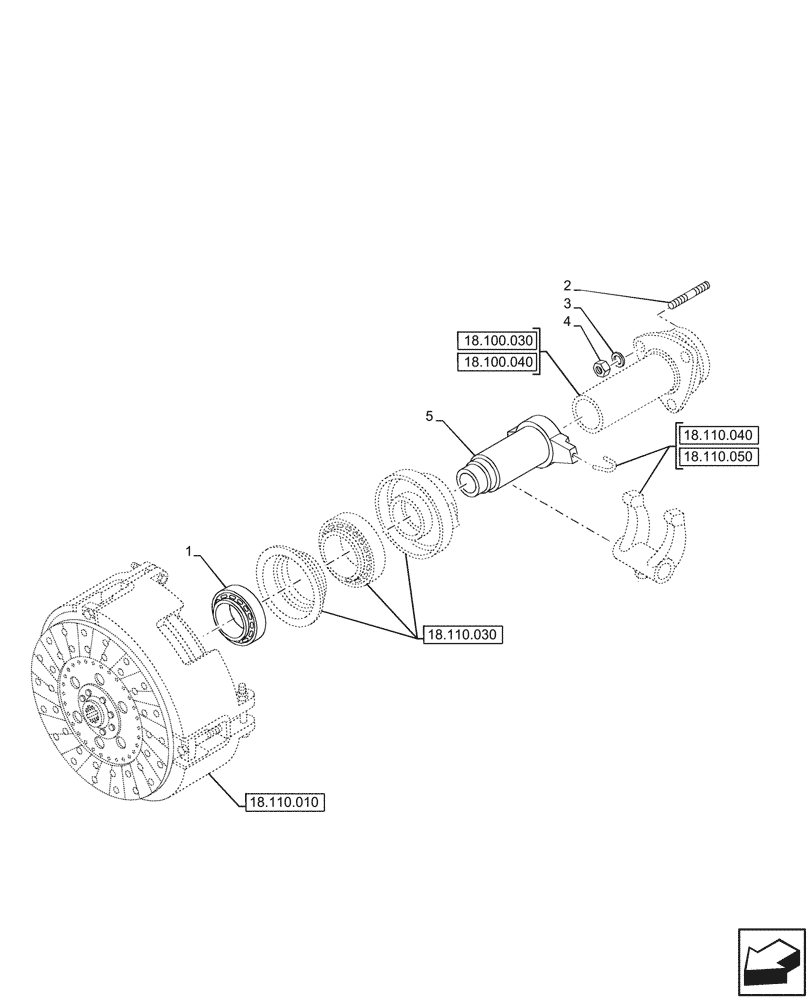

Схема запчастей Case IH JX95HC PLUS - (18.110.020) - STD + VAR - 335113, 390110 - CLUTCH MECHANISM, BEARING CARRIER (18) - CLUTCH
18.110.010
1
18.110.050
18.100.040
18.110.040
2
3
18.100.030
18.110.030
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87345759

BALL BEARING,50mm ID x 90.5mm OD x 22mm W

1шт.

2

13517111

STUD,M8 x 12mm, Cl 5.8

3шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

5

5089355

BEARING CARRIER,55mm ID x 182mm L

1шт.
