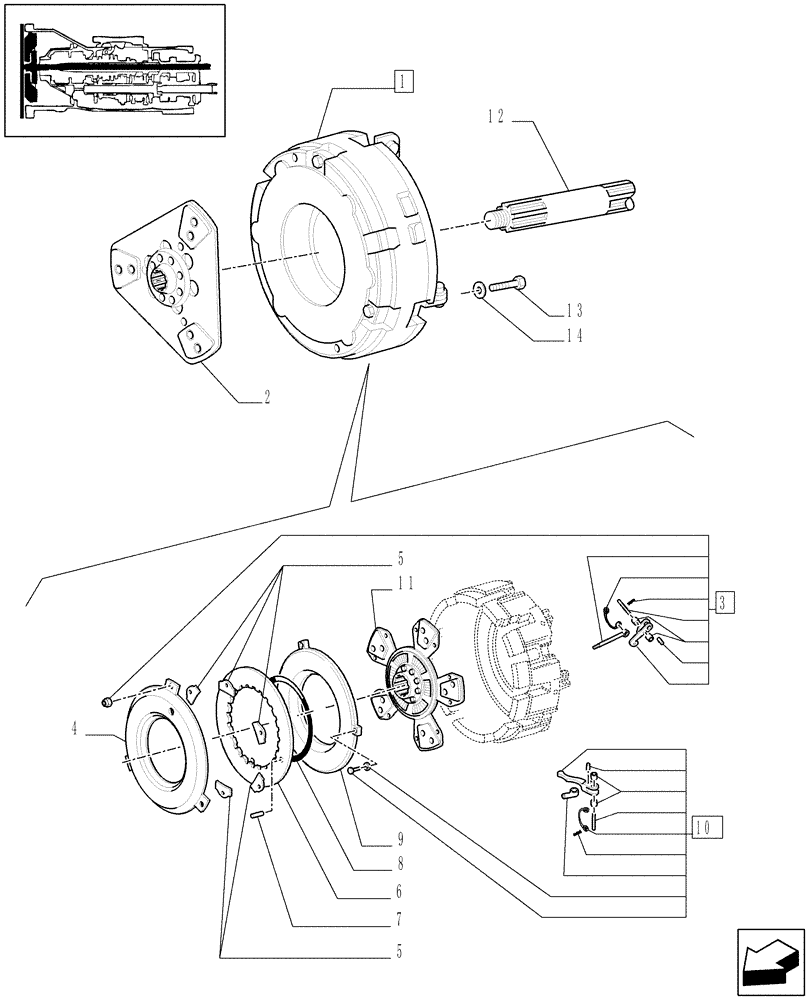

Запчасти Case IH JX1075C (1.25.0[01B]) - CLUTCH - D4941 (03) - TRANSMISSION

1

47134895

CLUTCH

ASSY

1шт.

1

47134895R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

1

47134895C

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

47134882

CLUTCH PLATE,280mm OD

1шт.

2

47134882R

REMAN-CLUTCH PLATE

JX1070C, JX1075C, All BSN D4941

1шт.

2

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

47137138

KIT

1шт.

4

5196792

PRESSURE RING

1шт.

5

5196836

BRACKET

6шт.

6

5196834

SPRING

1шт.

7

9919443

ROLL PIN

1шт.

8

5196835

RING

1шт.

9

9968849

PRESSURE RING

1шт.

10

47137137

KIT

1шт.

11

47134896

CLUTCH PLATE,280mm OD

1шт.

12

5177717

SHAFT

1шт.

13

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.
