(1.92.75/12) - (VAR.068/1-069) ISO - 12X12 (40KM/H) WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES

Запчасти Case IH JX1095C (1.92.75/12) - (VAR.068/1-069) ISO - 12X12 (40KM/H) WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

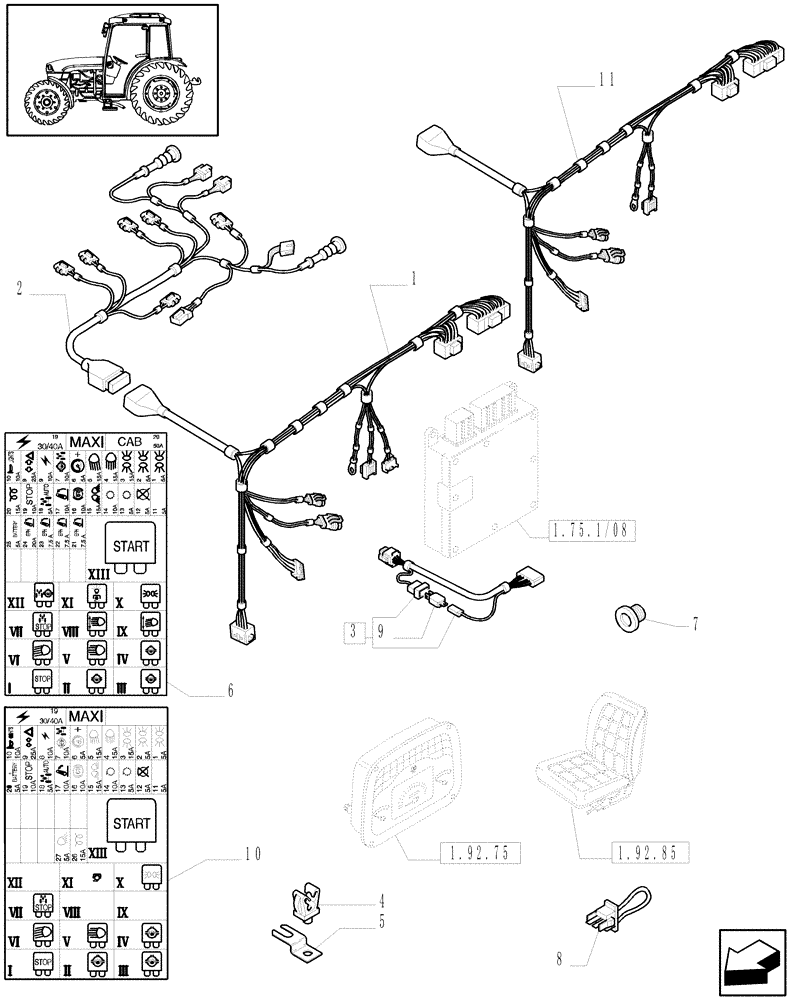

Схема запчастей Case IH JX1095C - (1.92.75/12) - (VAR.068/1-069) ISO - 12X12 (40KM/H) WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB
6
5
8
11
1
1.92.75
1.92.85
4
7
1.75.1/08
3
10
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134764

ELECTRIC CABLE

, Serial Range: -HJH076230

1шт.

Power Shuttle Dashboard Harness

1шт.

2

47134766

ELECTRIC CABLE

1шт.

Power Shuttle Transmission Harness

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

Seat Safety Circuit

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

2шт.

5

5120229

PLATE

2шт.

6

47129932

DECAL

Fuse, W/CAB

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

1шт.

9

83929594

DIODE

1шт.

10

47129973

DECAL

Fuse, L/CAB, VAR. 068/1

1шт.

11

87530950

ELECTRIC CABLE

VAR.069, Start Serial: HJH076231

1шт.

Power Shuttle Dashboard Harness

1шт.
