(1.92.85/02) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB

Запчасти Case IH JX1095N (1.92.85/02) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

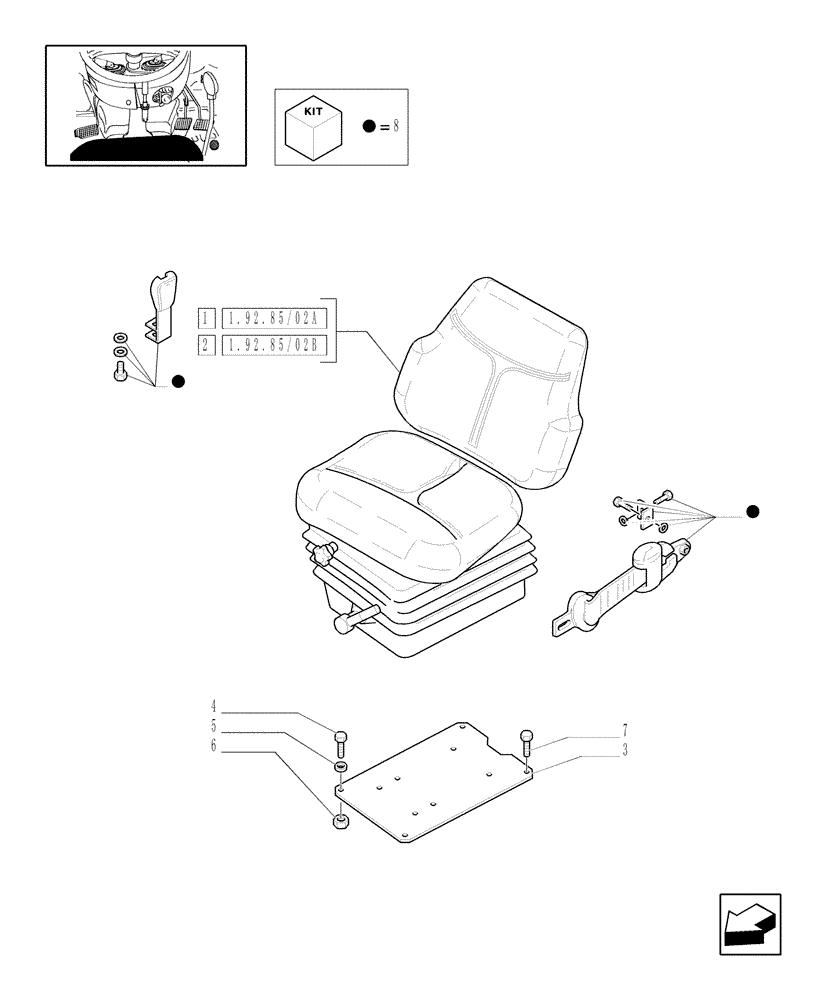

Схема запчастей Case IH JX1095N - (1.92.85/02) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB
3
8
1.92.85/02b
8
7
6
4
5
1.92.85/02a
8
2
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133674

DRIVER SEAT

Case Cloth, W/Seat Belt, L/Switch

1шт.

2

87553488

DRIVER SEAT

ASSY, Start Serial: D5644

1шт.

3

5196614

PLATE

, Start Serial: D5644

1шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8 x 1.25 x 22, Start Serial: D5644

2шт.

5

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8 x 16 x 1.9, Start Serial: D5644

4шт.

6

5182253

NUT

M8 x 1.25, Start Serial: D5644

2шт.

7

14441927

SCREW,FLAT, M8 x 16mm, Cl 8.8

, Start Serial: D5644

4шт.

8

47130720

KIT

, Start Serial: D5644

1шт.
