(1.92.94/01[03]) - (VAR.608) AIR CONDITIONING/CONDITIONER - PIPES AND RELEVANT PARTS

Запчасти Case IH JX1095N (1.92.94/01[03]) - (VAR.608) AIR CONDITIONING/CONDITIONER - PIPES AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

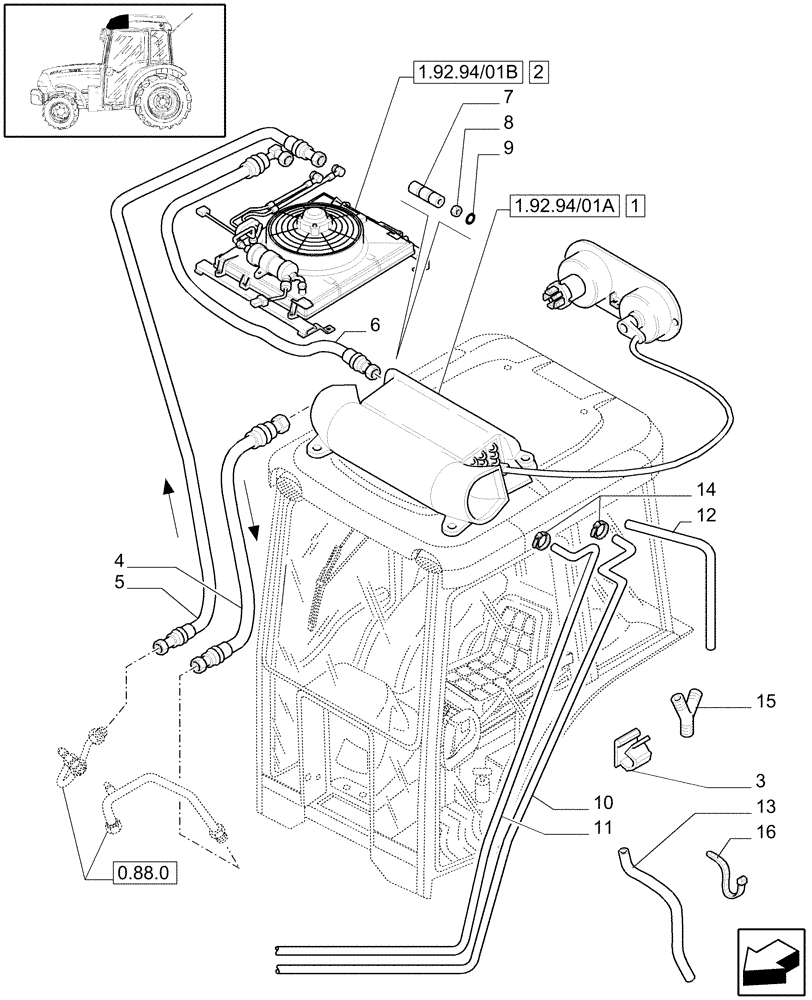

Схема запчастей Case IH JX1095N - (1.92.94/01[03]) - (VAR.608) AIR CONDITIONING/CONDITIONER - PIPES AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB
14
8
2
1
5
12
0.88.0
4
10
15
13
7
9
3
16
1.92.94/01b
6
1.92.94/01a
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131165

AIR CONDITIONER

1шт.

2

5197023

CONDENSER

Assy.

1шт.

3

5182865

CLIP

4шт.

4

47133699

FLEXIBLE HOSE

From Compressor To Evaporator, MM.3000

1шт.

5

47133697

FLEXIBLE HOSE

From Compressor To Condenser, MM.2950

1шт.

6

47133503

FLEXIBLE HOSE,10.3mm ID x 382mm L

From Condenser To Evaporator, MM.382

1шт.

6

47134276

FLEXIBLE HOSE

From Condenser To Evaporator, MM.310

1шт.

7

5189704

HYD CONNECTOR

1шт.

7

5194336

HYD CONNECTOR

2x22

1шт.

8

5195331

NUT

3/4

2шт.

8

5194591

NUT

5/8

2шт.

9

10261750

GASKET

20x18x1.5

2шт.

10

5143838

FLEXIBLE HOSE

Engine Return, DIA=14

1шт.

11

5143838

FLEXIBLE HOSE

Feed, DIA=14

1шт.

12

19053382

HOSE,10.00 mm

10x15

1шт.

13

5186461

TUBE

Wrinkled. 300mm L

2шт.

14

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

DIA=16-25

2шт.

15

5186511

HYD CONNECTOR

2шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.
