(1.40. 2/07) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - POWER STEERING CYLINDERS

Запчасти Case IH JX1070U (1.40. 2/07) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - POWER STEERING CYLINDERS (04) - FRONT AXLE & STEERING

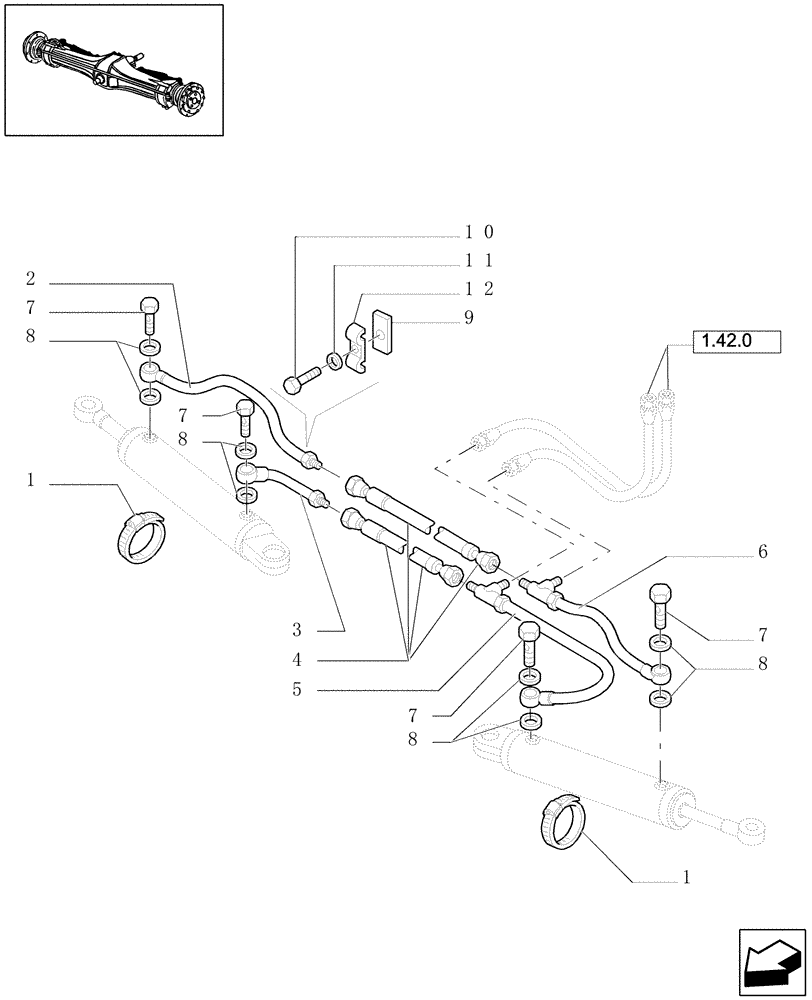

Схема запчастей Case IH JX1070U - (1.40. 2/07) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - POWER STEERING CYLINDERS (04) - FRONT AXLE & STEERING
6
1
2
7
8
10
5
4
12
7
8
8
8
7
1
7
11
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50÷70

2шт.

2

5174320

HYD TUBE

1шт.

3

5174317

HYD TUBE

1шт.

4

5169236

FLEXIBLE HOSE

2шт.

5

5174315

HYD TUBE

1шт.

6

5174322

HYD TUBE

1шт.

7

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

4шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86 x 22.23 x 2

8шт.

9

5138294

SUPPORT

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

4999554

CLAMP,2 Hoses

2шт.
