(1.40. 8/08) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR.TRANSM. - POWER STEER. CYLIN.

Запчасти Case IH JX1080U (1.40. 8/08) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR.TRANSM. - POWER STEER. CYLIN. (04) - FRONT AXLE & STEERING

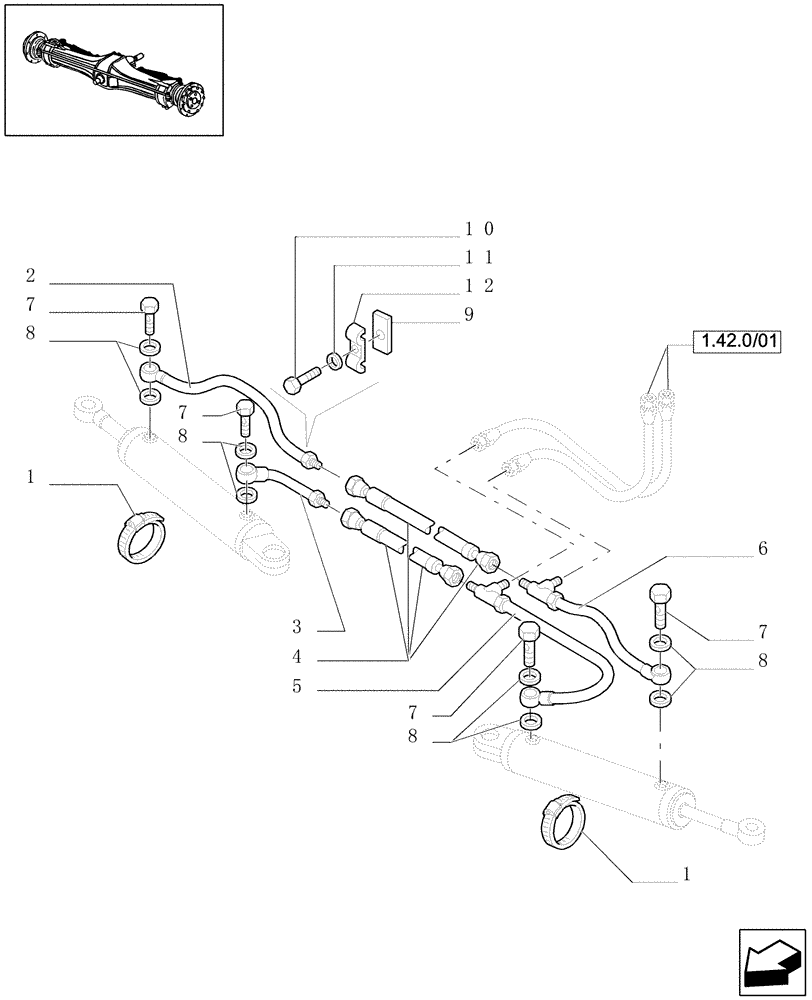

Схема запчастей Case IH JX1080U - (1.40. 8/08) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR.TRANSM. - POWER STEER. CYLIN. (04) - FRONT AXLE & STEERING
8
11
8
7
12
8
10
2
4
3
8
9
1
6
5
1
7
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50÷70

2шт.

2

5174320

HYD TUBE

1шт.

3

5174317

HYD TUBE

1шт.

4

5169237

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R1

2шт.

5

5174315

HYD TUBE

1шт.

6

5174322

HYD TUBE

1шт.

7

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

4шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

9

5138294

SUPPORT

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

4999554

CLAMP,2 Hoses

2шт.
