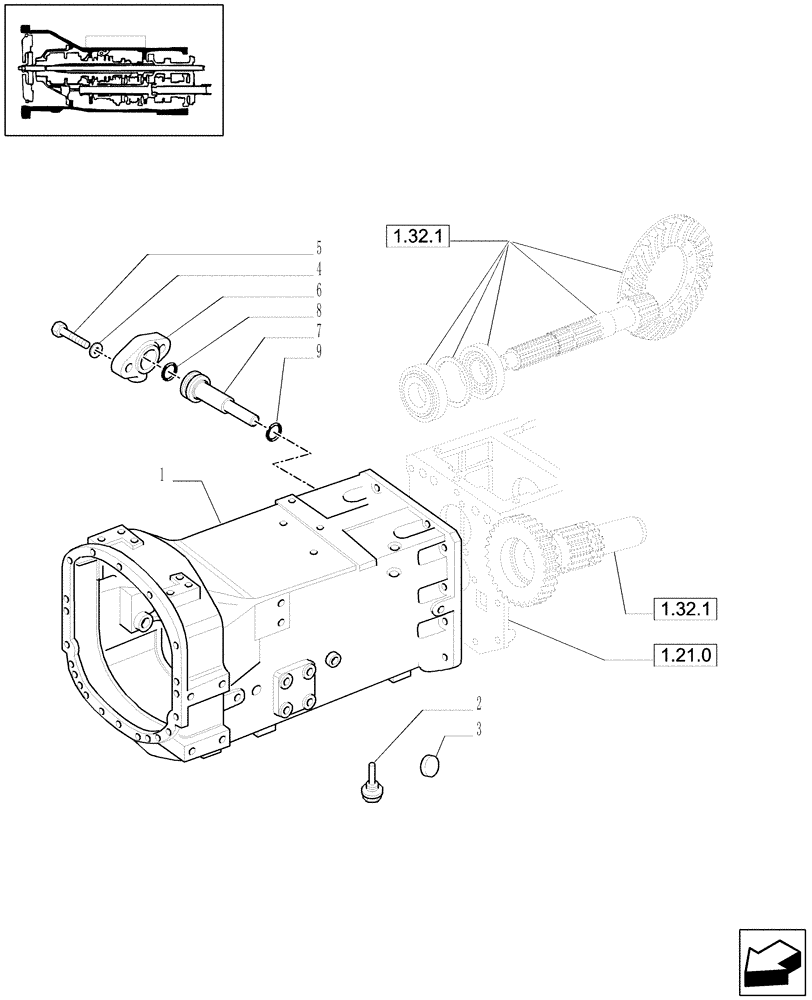

Запчасти Case IH JX1090U (1.21.0/02) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - CLUTCH BOX (03) - TRANSMISSION

1

47132243

HOUSING

1шт.

2

5118991

PLUG,M22 x 1.5

1шт.

3

5171614

PLUG,27mm OD

D=27

2шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

, Start Serial: D4983

2шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D4983

2шт.

6

47132241

FLANGE

, Start Serial: D4983

1шт.

7

47132240

PISTON

, Start Serial: D4983

1шт.

8

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

, Start Serial: D4983

1шт.

9

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

, Start Serial: D4983

1шт.
