(1.27.1[01]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - GEARS

Запчасти Case IH JX70U (1.27.1[01]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - GEARS (03) - TRANSMISSION

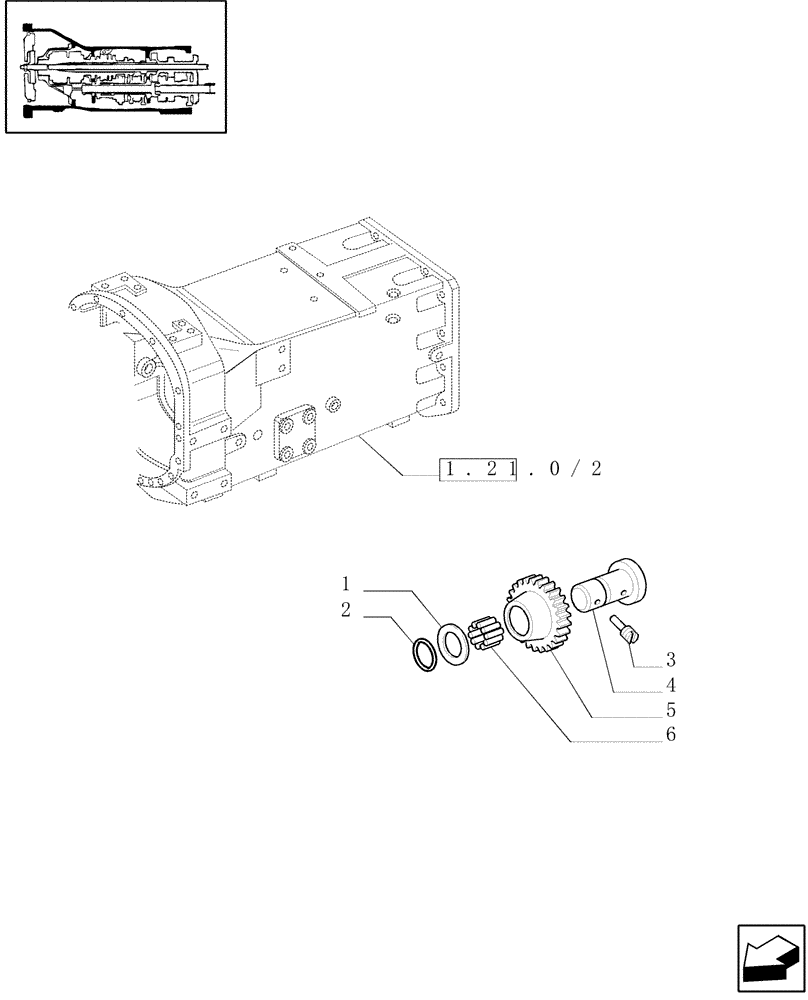

Схема запчастей Case IH JX70U - (1.27.1[01]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - GEARS (03) - TRANSMISSION
5
6
3
4
1.21.0/2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

32X48X4.5

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

3

5109695

THREADED ROD

M10X1.25

1шт.

4

5137525

PIN

1шт.

5

5137524

IDLER GEAR

1шт.

6

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

32X38X26

1шт.
