(1.32.6/06) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - ROD AND FORK

Запчасти Case IH JX80U (1.32.6/06) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - ROD AND FORK (03) - TRANSMISSION

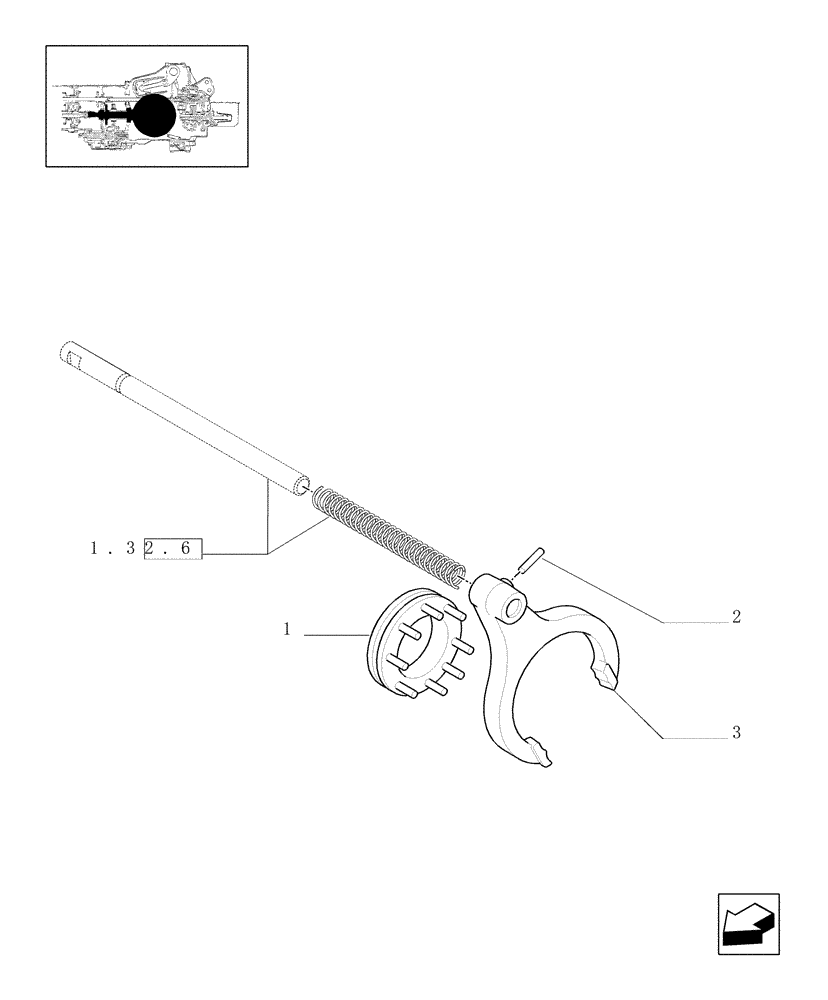

Схема запчастей Case IH JX80U - (1.32.6/06) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - ROD AND FORK (03) - TRANSMISSION
2
1
1.32.6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181720

COLLAR

1шт.

2

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

3

5181268

SHIFTER FORK

1шт.

Выбрано товаров: 3
