(1.40.0/123[02]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCK. 30-40 KM/H. - PIPES

Запчасти Case IH JX80U (1.40.0/123[02]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCK. 30-40 KM/H. - PIPES (04) - FRONT AXLE & STEERING

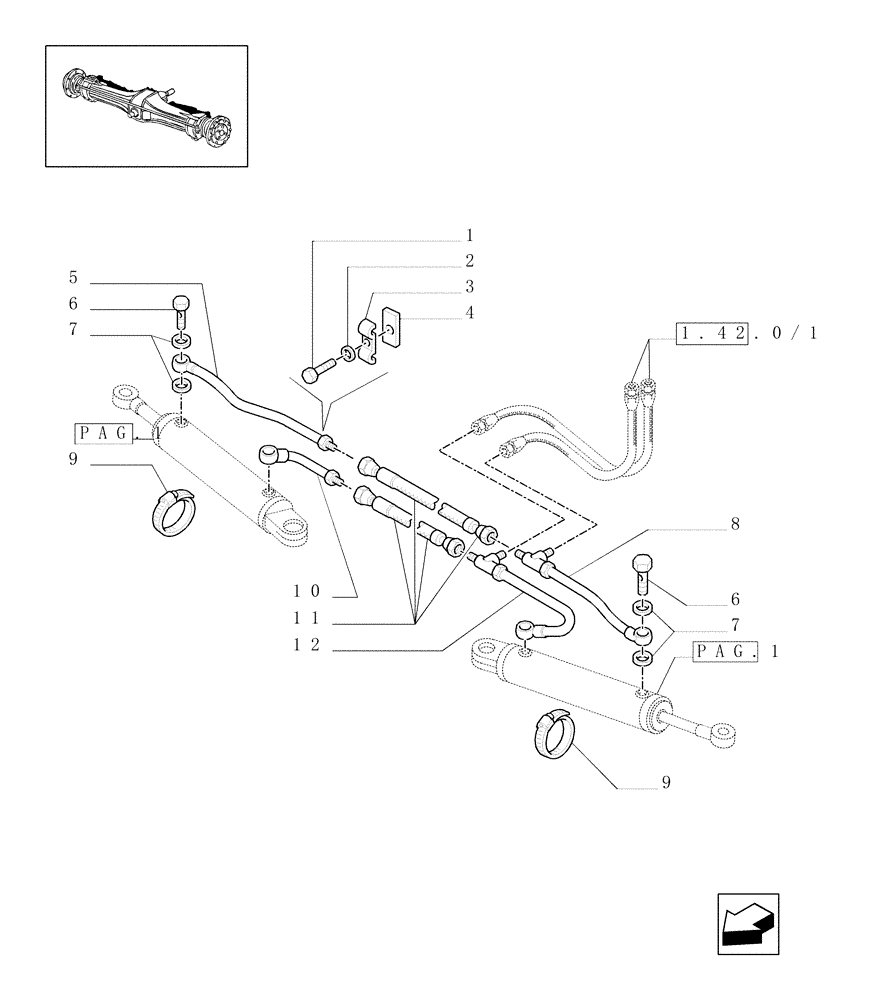

Схема запчастей Case IH JX80U - (1.40.0/123[02]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCK. 30-40 KM/H. - PIPES (04) - FRONT AXLE & STEERING
7
pag.1
7
12
4
9
6
5
11
10
2
8
pag.1
9
3
1
1.42.0/1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

2

12035670

LOCK WASHER

M6

2шт.

3

4999554

CLAMP,2 Hoses

2шт.

4

5138294

SUPPORT

2шт.

5

5174320

HYD TUBE

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14X1.5X30

4шт.

7

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14X20X1.5

8шт.

8

5174322

HYD TUBE

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

2шт.

10

5174317

HYD TUBE

1шт.

11

5169237

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R1

2шт.

12

5174315

HYD TUBE

1шт.
