(098[B]) - ELECTRICAL SYSTEM, HEADLIGHTS, SEALED BEAM

Запчасти Case IH 240 (098[B]) - ELECTRICAL SYSTEM, HEADLIGHTS, SEALED BEAM (06) - ELECTRICAL SYSTEMS

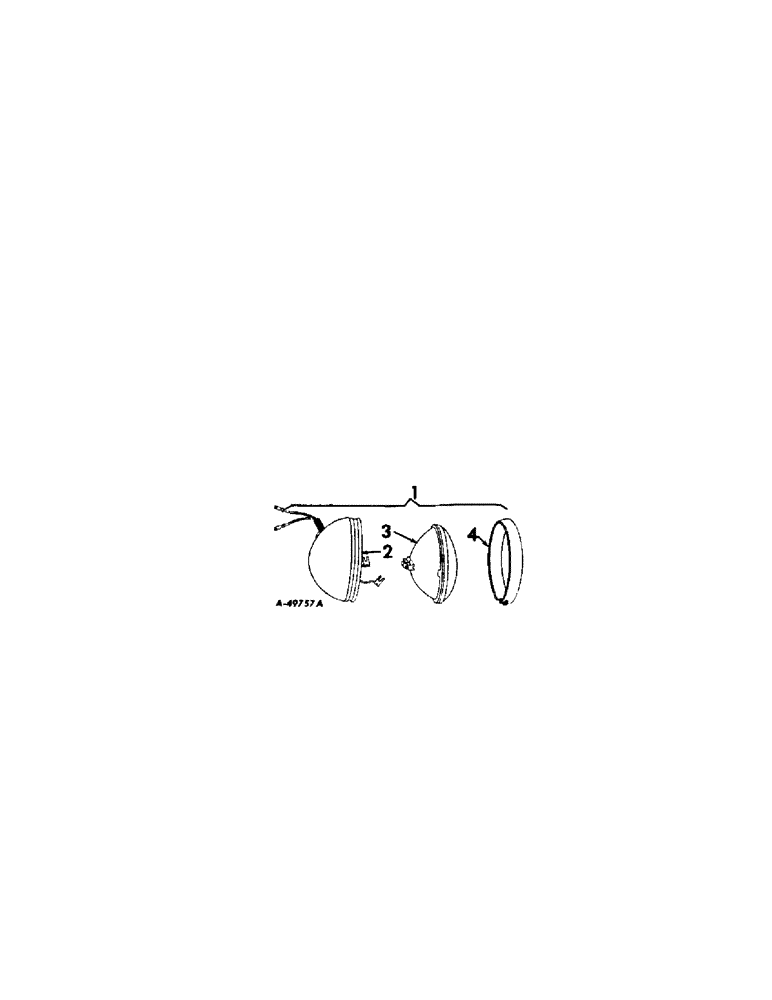

Схема запчастей Case IH 240 - (098[B]) - ELECTRICAL SYSTEM, HEADLIGHTS, SEALED BEAM (06) - ELECTRICAL SYSTEMS
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

NSS

NOT SOLD SEPARAT

BODY (not serviced separately - order light, assembly)

1шт.

3

371457R91

LAMP

UNIT, sealed beam

1шт.

4

371448R91

MOULDING, assembly (Dietz)

1шт.

365697R1

NUT, clamp screw moulding

1шт.

132489

SCREW, mach. slotted, fill-hd., no. 8-32 x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

4

371449R91

MOULDING, assembly (guide)

1шт.

53526D

SCREW

moulding assembly

1шт.
