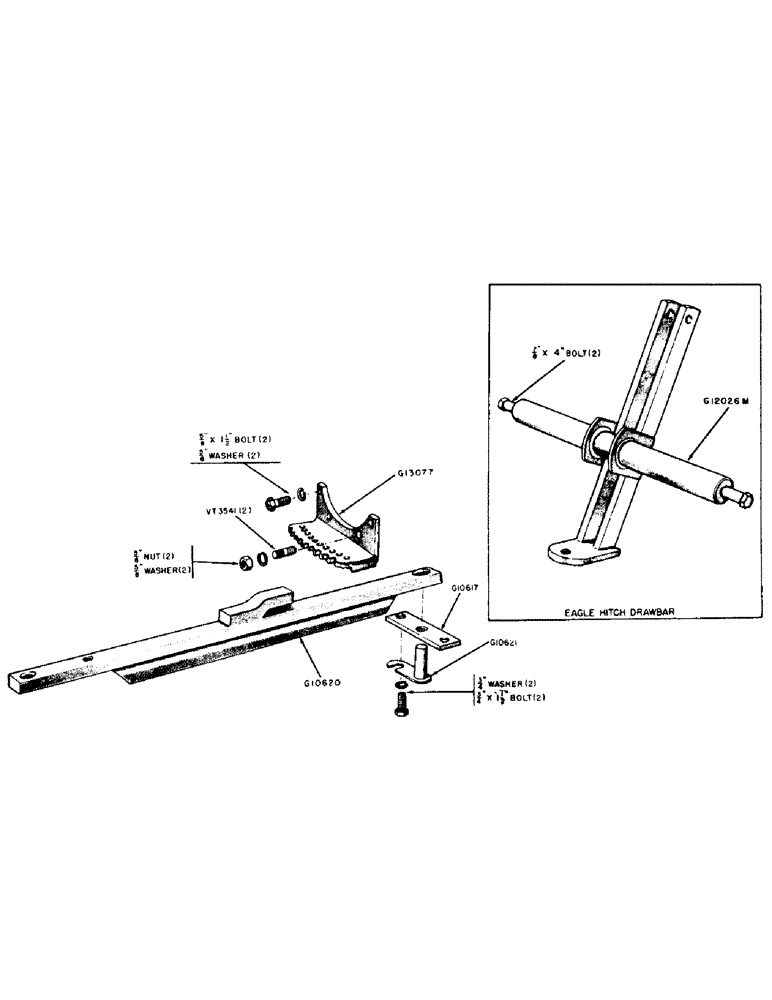

Запчасти Case IH 300-SERIES (167) - EAGLE HITCH DRAWBAR, SWINGING DRAWBAR ATTACHMENT (09) - CHASSIS

G12026M

DRAWBAR - Eagle Hitch w/hitch pins, includes 2 - 7/8" x 4" NC hex hd. bolts (Mchy. Item)

1шт.

G10617

SUPPORT

- pin, swinging drawbar attachment

1шт.

3/4" X 1-1/2" HEX. HD. BOLT UNC W/LOCKWASHER, swinging drawbar attachment

2шт.

G10620

DRAWBAR ASSEMBLY, swinging drawbar attachment

1шт.

G10621

DRAWBAR PIN AND LATCH, swinging drawbar attachment

1шт.

G13077

SUPPORT - drawbar, swinging drawbar attachment

1шт.

5/8" X 1-1/2" HEX. HD. BOLT UNC AND LOCKWASHER, swinging drawbar attachment

2шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2"), swinging drawbar attachment

2шт.

5/8" HEX. NUT, N.F. and lockwasher, swinging drawbar attachment

2шт.
