(176) - FRONT MOUNTED PUMP COUPLING

Запчасти Case IH 300-SERIES (176) - FRONT MOUNTED PUMP COUPLING (88) - ACCESSORIES

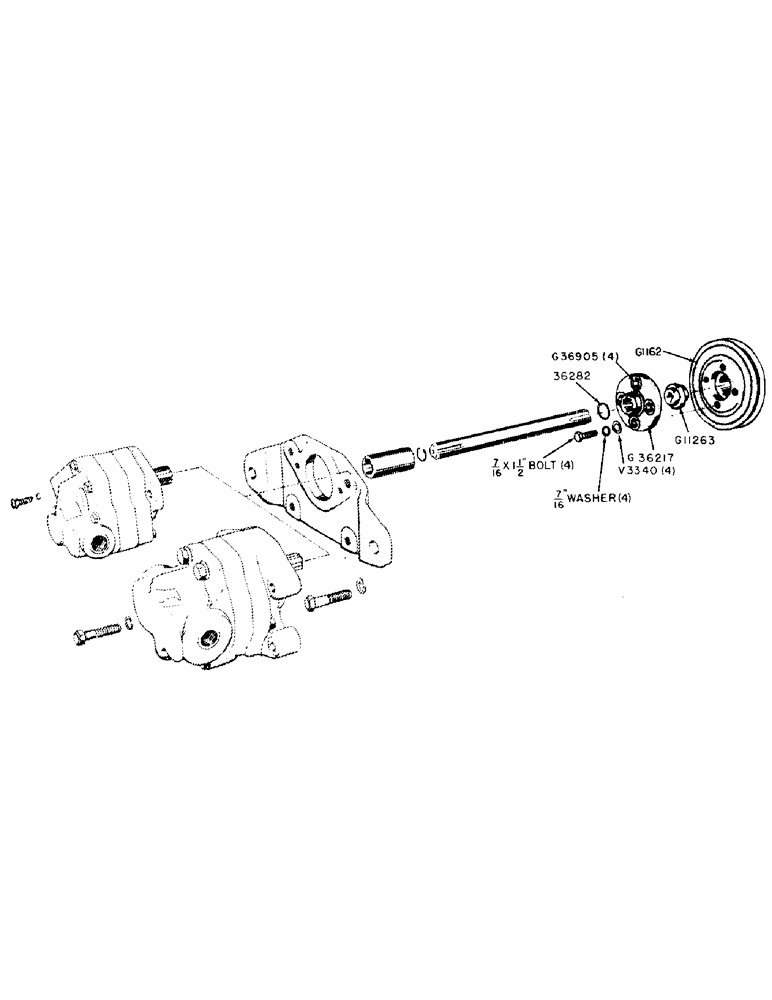

Схема запчастей Case IH 300-SERIES - (176) - FRONT MOUNTED PUMP COUPLING (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G1162

X

PULLEY - fan drive

1шт.

G11263

NUT

- fan drive pulley

1шт.

G36217

HUB ASSY.

COUPLING - flexible (Includes 4 - G36905 block and bushing assemblies)

1шт.

7/16" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G36905

BLOCK

AND BUSHING - flex. coupling

4шт.

VT3340

X

WASHER - coupling bolt (3/4" OD x 29/64" ID #16 ga.)

4шт.
