(057) - DIESEL ENGINE, PARTS FOR G11080 HAND PRIMER PUMP

Запчасти Case IH 300-SERIES (057) - DIESEL ENGINE, PARTS FOR G11080 HAND PRIMER PUMP (03) - FUEL SYSTEM

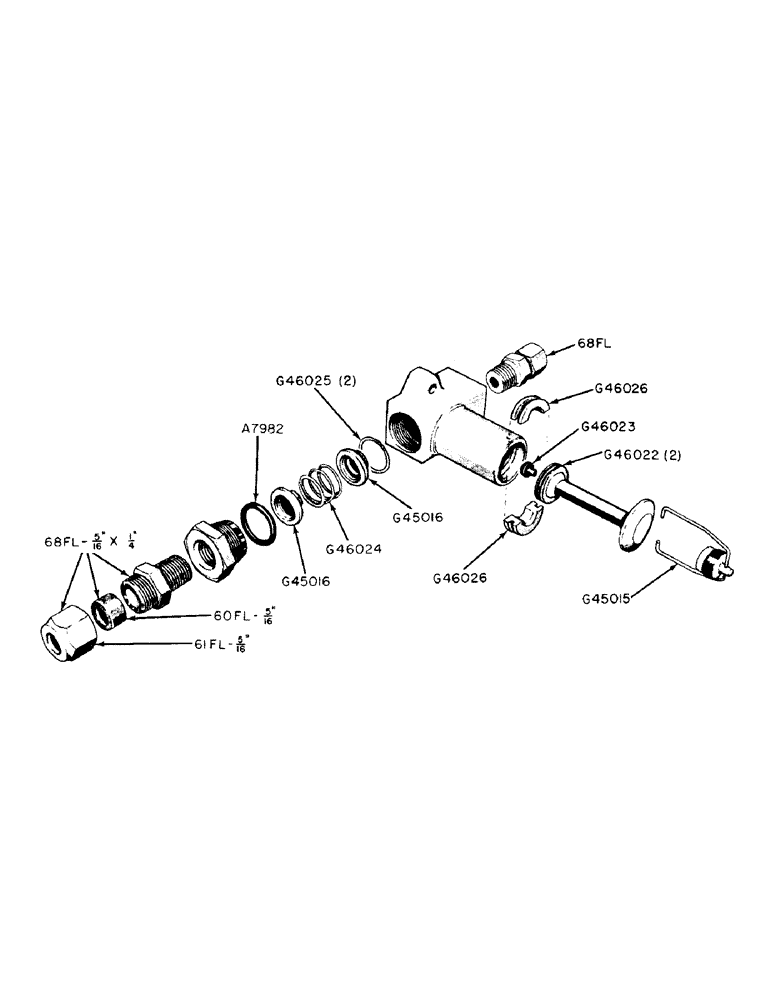

Схема запчастей Case IH 300-SERIES - (057) - DIESEL ENGINE, PARTS FOR G11080 HAND PRIMER PUMP (03) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - valve nut

1шт.

G11080

PUMP - complete

1шт.

68FL-5/16" X 1/4" CONNECTOR, includes 60FL-5/16" sleeve and 61FL-5/16" nut

2шт.

G45015

X

WIRE AND NUT ASSEMBLY - plunger retaining

1шт.

G45016

X

VALVE - hand primer

2шт.

G46022

WASHER - rubber, piston

2шт.

G46023

SEAL - piston

1шт.

G46024

SPRING - valve retaining

1шт.

G46025

GASKET - valve

2шт.

G46026

GUIDE - plunger

2шт.
