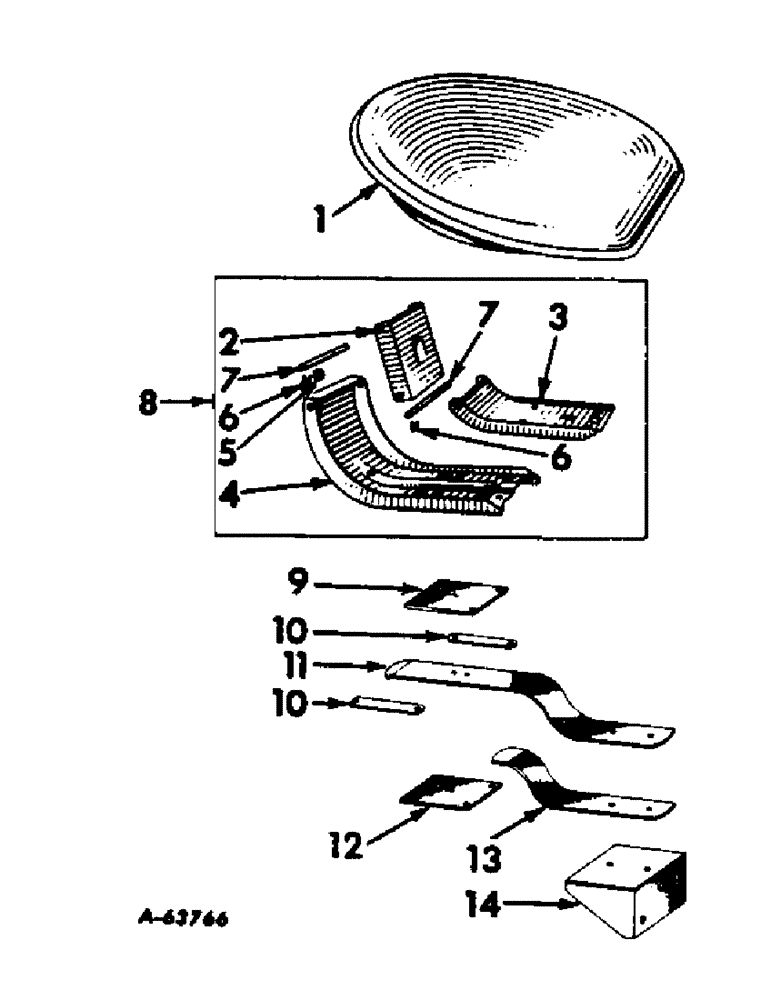

Запчасти Case IH 340 (278) - SEAT AND SUPPORTS, INTERNATIONAL 340 SERIES GROVE TRACTORS Seat & Supports

1

354155R92

SEAT ASSEMBLY, upholstered

1шт.

SCREW, 7/16NF x 3/4" cap

4шт.

WASHER, 7/16" lock

4шт.

2

356895R2

SUPPORT

HINGE

1шт.

3

356896R2

RETAINER, seat

1шт.

4

356897R3

BRACKET, seat adjustment

1шт.

NUT, 7/16"

4шт.

SCREW, 7/16 x 3/4" cap

4шт.

WASHER, 7/16" lock

4шт.

5

80158H

WASHER

SPACER

2шт.

6

356893R2

WASHER

"X"

4шт.

7

356892R2

PIN

hinge

2шт.

8

356891R94

BRACKET ASSEMBLY, tilt back seat, composed of (1) bracket 356897R3, (1) hinge 356895R2, (2) pin 356892R2, (1) retainer 356896R2, (2) spacer 80158H, (4) washer 356893R2

1шт.

SCREW, 7/16 x 3/4" cap

4шт.

WASHER, 7/16" lock

4шт.

9

362553R1

BRACKET, seat adjustment upper

1шт.

10

362554R1

SPACER, seat adjustment bracket

2шт.

11

377607R1

SPRING, upper seat

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 1-1/2" cap

2шт.

WASHER, 1/2" lock

2шт.

12

362553R11

BRACKET ASSEMBLY, seat adjustment lower

1шт.

SCREW, 7/16NF x 1-3/8" cap

4шт.

WASHER, 7/16" lock

4шт.

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2" dowel

1шт.

13

377606R1

SPRING, lower seat

1шт.

14

377608R11

BRACKET ASSEMBLY, seat spring

1шт.

SCREW, 5/8 x 1-1/2" cap

3шт.

WASHER, 5/8" lock

3шт.
