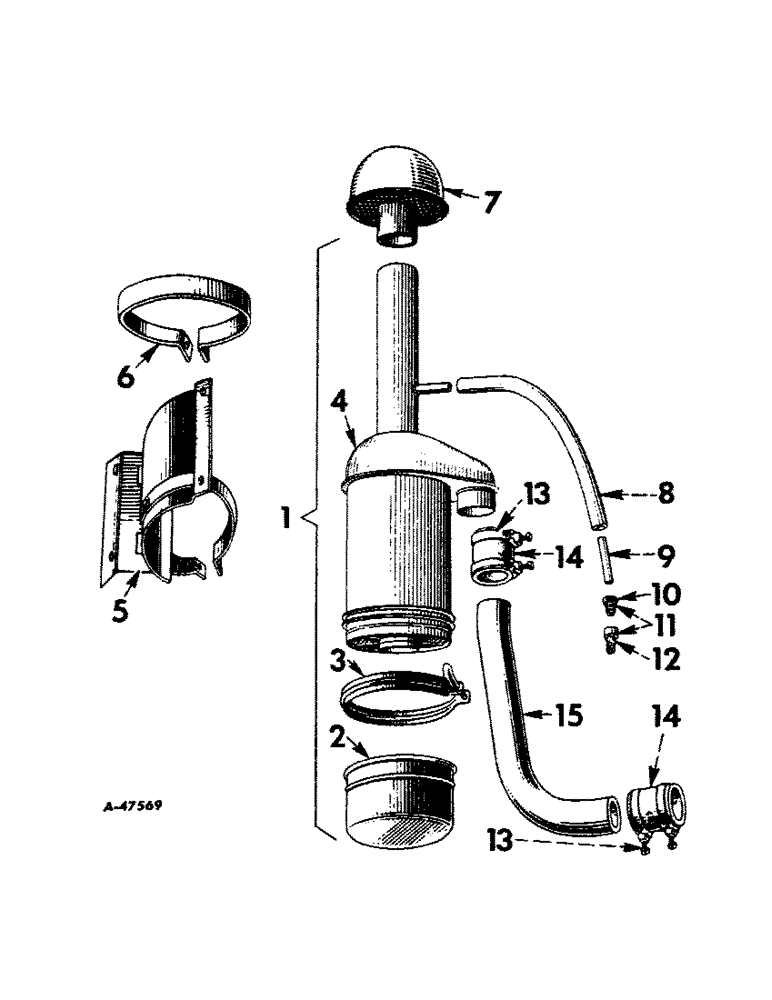

Запчасти Case IH 450-SERIES (240) - CHASSIS, AIR CLEANER & CONNECTIONS (12) - CHASSIS

1

364461R91

CLEANER, air, assembly, composed of (1) body 364807R91, (1) clamp 52868DA, (1) cup 363005R91 (A only)

1шт.

1

364864R91

CLEANER, air, assembly, composed of (1) body 364865R91, (1) clamp 52868DA, (1) cup 363005R91 (B only)

1шт.

1

364465R91

CLEANER, air, assembly, composed of (1) body 364661R91, (1) clamp 52868DA, (1) cup 364662R91 (C only)

1шт.

1

364854R91

CLEANER, air, assembly, composed of (1) body 364855R91, (1) clamp 52868DA, (1) cup 364662R91 (D only)

1шт.

2

363005R91

CUP, oil (A only) (B only)

1шт.

2

364662R91

CUP, oil (not illustrated (C only) (D only)

1шт.

3

52868DA

CLAMP

oil cup retainer

1шт.

4

364807R91

BODY, air cleaner (A only)

1шт.

4

364865R91

BODY, air cleaner (B only)

1шт.

4

364661R91

BODY, air cleaner (C only)

1шт.

4

364855R91

BODY, air cleaner (D only)

1шт.

5

60669D

BRACKET, air cleaner (A only) (B only)

1шт.

5

364592R11

BRACKET, air cleaner (not illustrated) (for tractors equipped with 22" liquefied petroleum gas tank) (C only) (D only)

1шт.

102635

NUT,3/8"-16, G5

(2 used with 60669D) (A only) (B only) 3/8"-16, G5

2шт.

(C only) (D only)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8" (1 used with 6-669D) (A only) (B only)

2шт.

(C only) (D only)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (4 used with 60669D) (A only) (B only) 3/8"

4шт.

(C only) (D only)

3шт.

6

60678DX

BAND, air cleaner bracket

2шт.

105605

NUT

sq-hd., 5/16-18NC

2шт.

117296

SCREW, fil-hd., 5/16-18NC x 1-1/2"

2шт.

7

353018R92

CYLINDER END CAP

CAP, air intake

1шт.

8

364441R1

HOSE (rubber) air cleaner to valve cover

1шт.

9

364252R11

PIPE, breather, air cleaner hose to elbow, w/nut, 37165D

1шт.

10

222-504

TUBE NUT,9/16"-20

NUT, hi-duty tube fitting, brs., 3/8" OD tubing

1шт.

11

361718R11

ELBOW

breather pipe, 361718R1, w/nut, 37165D

1шт.

12

361718R1

ELBOW, breather pipe

1шт.

13

45813D

CLAMP

air cleaner pipe hose

4шт.

14

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe (A only) (B only) 2.25" ID x 2.25", SAE 20R1 Class R

2шт.

14

363801R1

HOSE, air cleaner pipe, upper 2-1/4" ID x 2-3/4" long (C only) (D only)

1шт.

14

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe (C only) (D only) Lower 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

15

357028R1

PIPE, air cleaner 2.25" OD, 14.75" Length

1шт.
