(193) - REAR AXLE, REAR AXLE EXTENSION, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS

Запчасти Case IH 560 (193) - REAR AXLE, REAR AXLE EXTENSION, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS (05) - REAR AXLE

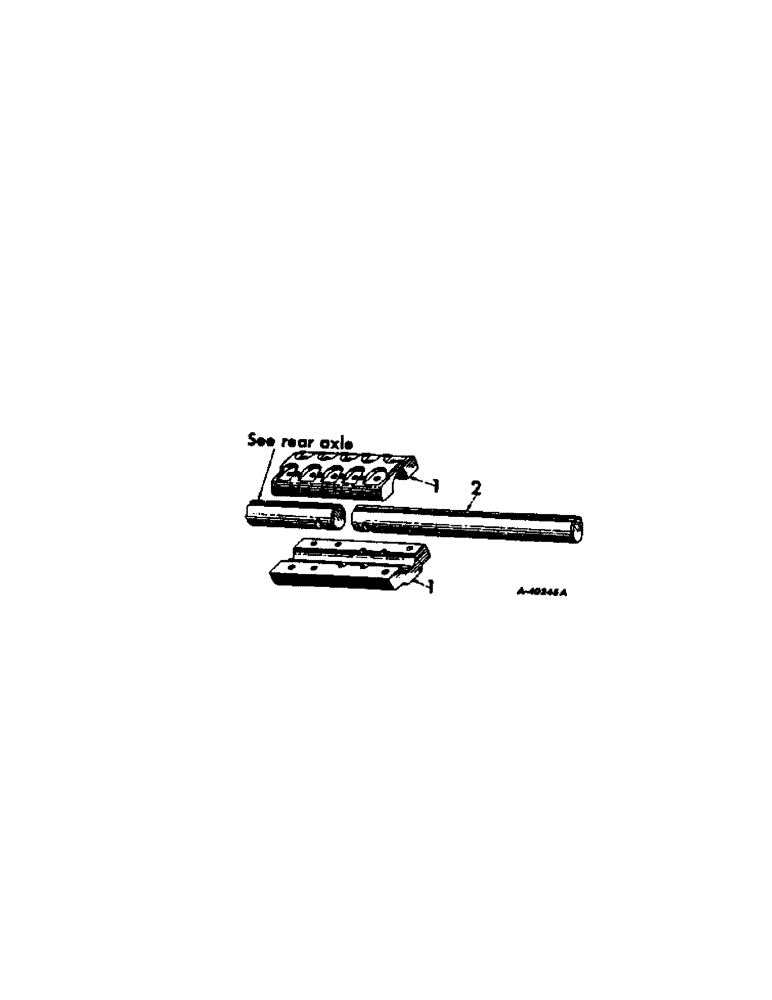

Схема запчастей Case IH 560 - (193) - REAR AXLE, REAR AXLE EXTENSION, FOR ALL FARMALL 560 SERIES TRACTORS EXCEPT HI-CLEAR MODELS (05) - REAR AXLE
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

353323R92

PARTS ACCESSORY, rear axle extension (tractors equipped with pneumatic tire rear wheels) (see note A)

1шт.

1

353328R1

CLAMP, rear axle extension

2шт.

NUT, 7/8 NF

10шт.

SCREW, 7/8 NF x 4-3/4" hex-hd. cap

10шт.

WASHER, 7/8" lock

10шт.

2

353327R3

EXTENSION, rear axle

1шт.
