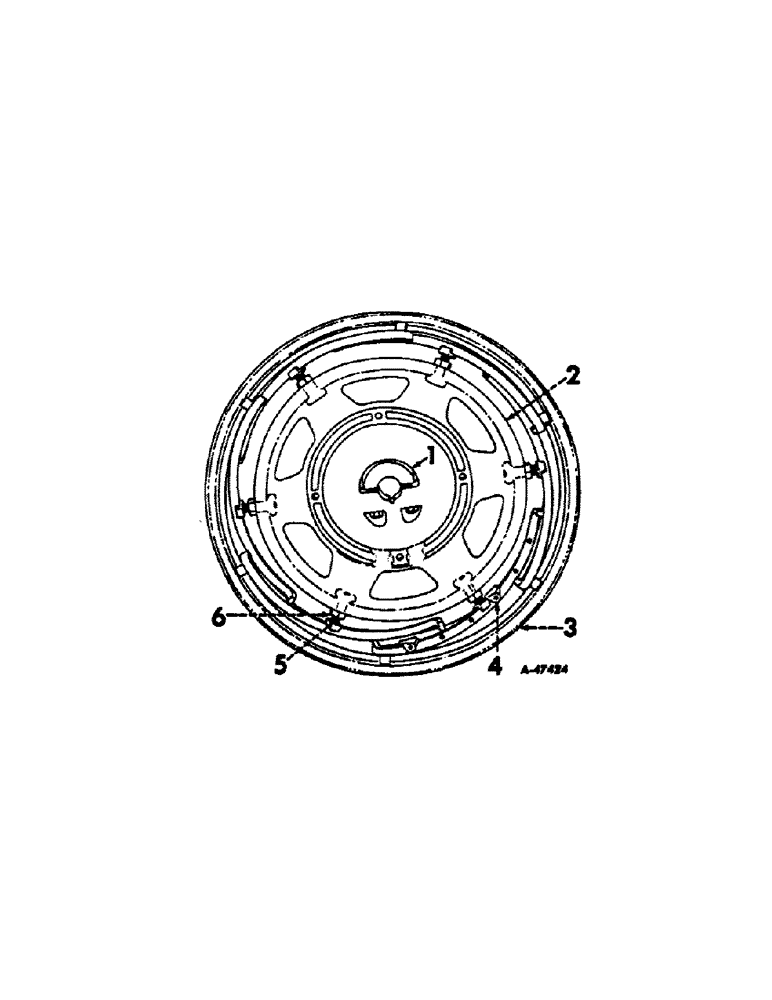

Запчасти Case IH 560 (202) - WHEELS, POWER ADJUSTED REAR WHEELS, FOR FARMALL 560 SERIES TRACTORS (11) - WHEELS

1

355440R2

CLAMP

rear wheel hub

4шт.

375465R1

BOLT,Spcl, Hex, 7/8" - 14 x 4", Gr 8

SCREW, 7/8 NF hex-hd. cap Farmall 560 series, Serial Range: 501-8573

8шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8 NF x 3/4" hex-hd. cap Farmall 560 series 8574 up

8шт.

2

366101R22

WHEEL

w/key, 363015R3 assembly, power adjusted rear

2шт.

363015R3

KEY

rear wheel drive

2шт.

3

366102R91

RIM ASSEMBLY, power adjusted rear wheel (W11-38 rim for 11-38 or 12-38 or 12.4-38 tire)

2шт.

3

366103R91

RIM ASSEMBLY, power adjusted rear wheel (W12-38 rim for 12-38 or 13-38 or 13.6-38 tire)

2шт.

3

367090R91

RIM ASSEMBLY, power adjusted rear wheel (W14L-38 for 15 5-38 tire)

2шт.

4

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

365326R1

SCREW

power adjusted rear wheel stop

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

power adjusted rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

power adjusted rear wheel jack screw

12шт.

366106R1

WRENCH, jack screw (1-11/16") (illustrated with tools and tool box)

1шт.
