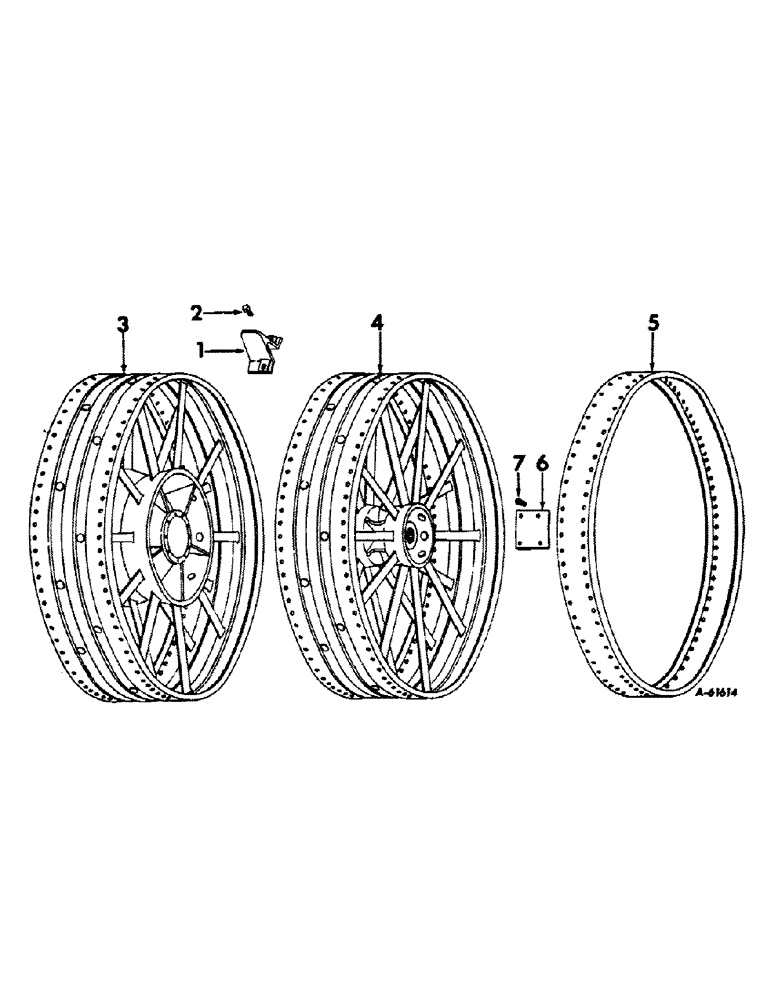

Запчасти Case IH 560 (205) - WHEELS, STEEL REAR WHEELS EXTENSION TIRES AND LUGS, 54 X 12 INCH, REAR WHEEL LUGS (11) - WHEELS

374378R91

PARTS ACCESSORY, spade lug (6" high x 4" wide) (unit A)

1шт.

1

374380R1

LUG, spade (6" high x 4" wide) (48 for unit A) (24 for unit B)

1шт.

2

375092R1

BOLT, spade lug (96 for unit A) (48 for unit B)

1шт.

NUT, 3/4" (96 for unit A) (48 for unit B)

1шт.

WASHER, 3/4" lock (96 for unit A) (48 for unit B)

1шт.

374374R91

PARTS ACCESSORY, steel rear wheel (consists of 2 wheels, 374375R91 and screw, 49637D) (International 560 series)

1шт.

374384R91

PARTS ACCESSORY, steel rear wheel (consists of two wheels, 374385R91, twenty screws, 271614 and screw, 49637D)

1шт.

3

374385R91

WHEEL ASSEMBLY, rear (International 660 series), steel

2шт.

4

374375R91

WHEEL ASSEMBLY, rear (International 560 series), steel

2шт.

49637D

SCREW, fifth speed lockout (illustrated with "rear frame cover"), steel rear wheels

1шт.

374376R91

PARTS ACCESSORY, rear wheel extension tire (for tractors equipped with steel rear wheels)

1шт.

5

70045DA

TIRE, rear wheel extension

2шт.

6

70046D

PLATE, rear wheel extension tire fastening

12шт.

13332R1

BOLT, 3/4 x 1-7/8" sq-hd. mach., extension tire

16шт.

NUT, 3/4", extension tire

16шт.

WASHER, 3/4" lock, extension tire

16шт.

7

374377R1

BOLT, extension tire fastening plate

32шт.

NUT, 3/4", extension tire

32шт.

WASHER, 3/4" lock, extension tire

32шт.
