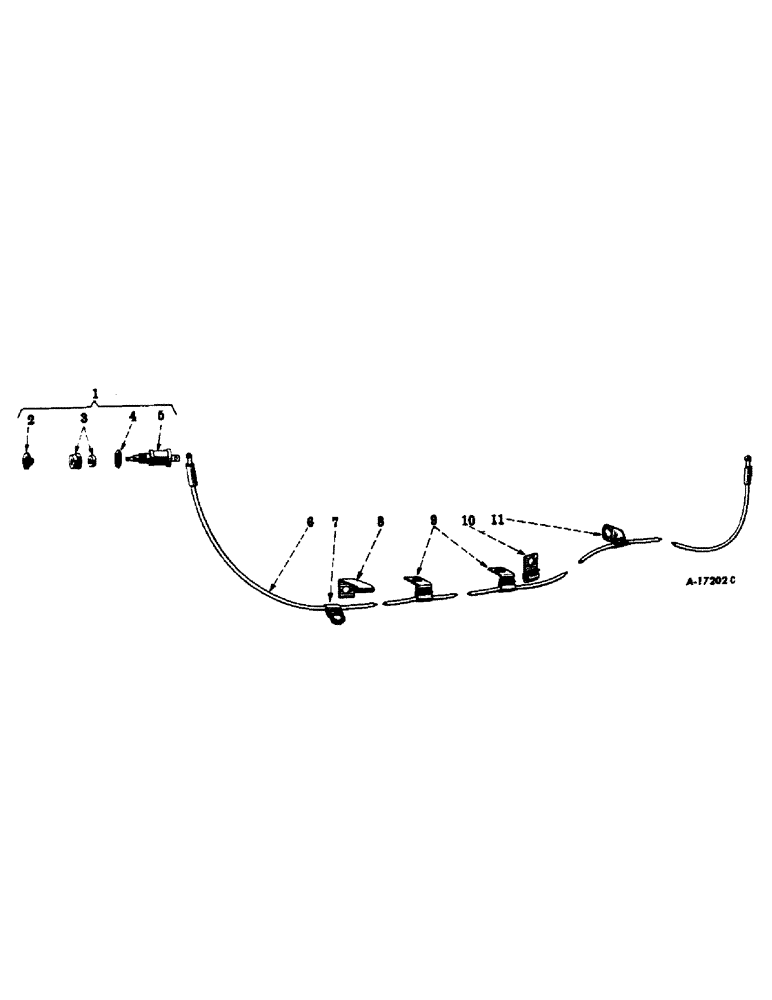

Запчасти Case IH FARMALL C (060) - ELECTRICAL SYSTEM, MAGNETOR IGNITION SWITCH AND CABLE (06) - ELECTRICAL SYSTEMS

1

54207DB

SWITCH

magneto ignition, assembly (Less reference no. 4), Composed of

1шт.

8732D

KNOB

1шт.

56517DX

NUT

1шт.

64022H

SCREW

1шт.

SWITCH (NSS)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

138553

WASHER

1шт.

2

8732D

KNOB, switch

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

NUT, mounting, magneto ignition switch, w/seal

1шт.

138553

WASHER

lock, internal-tooth, cd-pltd., 9/16"

1шт.

4

59109D

SPACER, magneto ignition switch (For tractors not equipped with starting and lighting)

1шт.

5

SWITCH, magneto ignition (Not serviced separately) (Order 54207DB)

1шт.

64022H

SCREW, ignition cable

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

6

358114R91

CABLE, magneto ignition switch (Not for tractors equipped with starting and lighting) (Will work for 56683D)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., no. 10-32 NF x 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

61813D

CLIP

cable (For tractors not equipped with starting and lighting)

1шт.

8

355574R1

CLIP

cable (For tractors not equipped with starting and lighting)

1шт.

9

351699R1

CLIP, magneto ignition switch cable (Tractors equipped with touch-control)

2шт.

10

61387D

CLIP, magneto ignition switch cable (Tractors without touch-control)

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

351871R1

CLIP, magneto ignition switch cable (For tractors not equipped with starting and lighting)

1шт.
