(067) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY, 6-VOLT

Запчасти Case IH FARMALL C (067) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY, 6-VOLT (06) - ELECTRICAL SYSTEMS

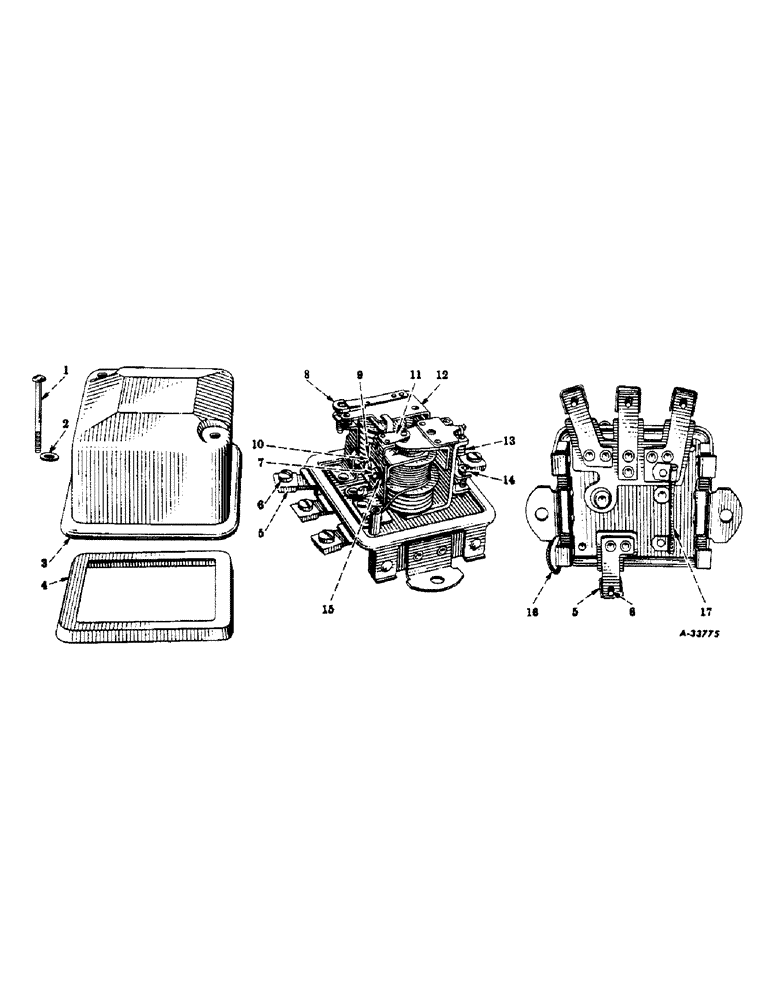

Схема запчастей Case IH FARMALL C - (067) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY, 6-VOLT (06) - ELECTRICAL SYSTEMS
5
14
4
16
6
1
10
5
7
15
13
6
2
11
3
17
12
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

360898R91

REGULATOR

voltage, assembly (Will work for 354234R91) (Mfr. no 1118780)

1шт.

1

SCREW, cover attaching (Mfr. no 1927982)

2шт.

2

WASHER, insulating cover attaching screw (Mfr. no 1922996)

2шт.

3

COVER (Mfr.no 1927980)

1шт.

4

GASKET, cover (Mfr. no 1927981)

1шт.

5

CLAMP, terminal (Mfr. no 1868137)

4шт.

6

SCREW, terminal (Mfr. no 1864099)

4шт.

7

SCREW, current-voltage regulator contact attaching (Mfr. no 1878516)

2шт.

8

SCREW, cut-out adjusting relay armature (Mfr. no 1912159)

1шт.

9

WASHER, insulating, current-voltage regulator contact attaching screw (Mfr. no 1878507)

2шт.

10

WASHER, lock, current-voltage regulator contact attaching screw (Mfr. no 1878505)

1шт.

11

CONTACT AND SUPPORT, current-voltage regulator (Mfr. no 1878517)

1шт.

12

ARMATURE, cut-out relay (Mfr. no 1878780)

1шт.

11

SCREW, cut-out relay armature (Mfr. no 454431)

2шт.

12

WASHER, lock, cut-out relay armature attaching screw (Mfr. no 1904377)

2шт.

13

SPRING, current-voltage regulator armature (Mfr. no 1912176)

1шт.

14

SCREW, current-voltage regulator armature adjusting (Mfr. no 1922408)

1шт.

15

INSULATOR, current-voltage regulator contact attaching screw (Mfr. no 1922599)

1шт.

16

LEAD, assembly, ground (Mfr. no 1927975)

1шт.

17

RESISTOR, "E" terminal to ground (Mfr. no 1910183)

1шт.
