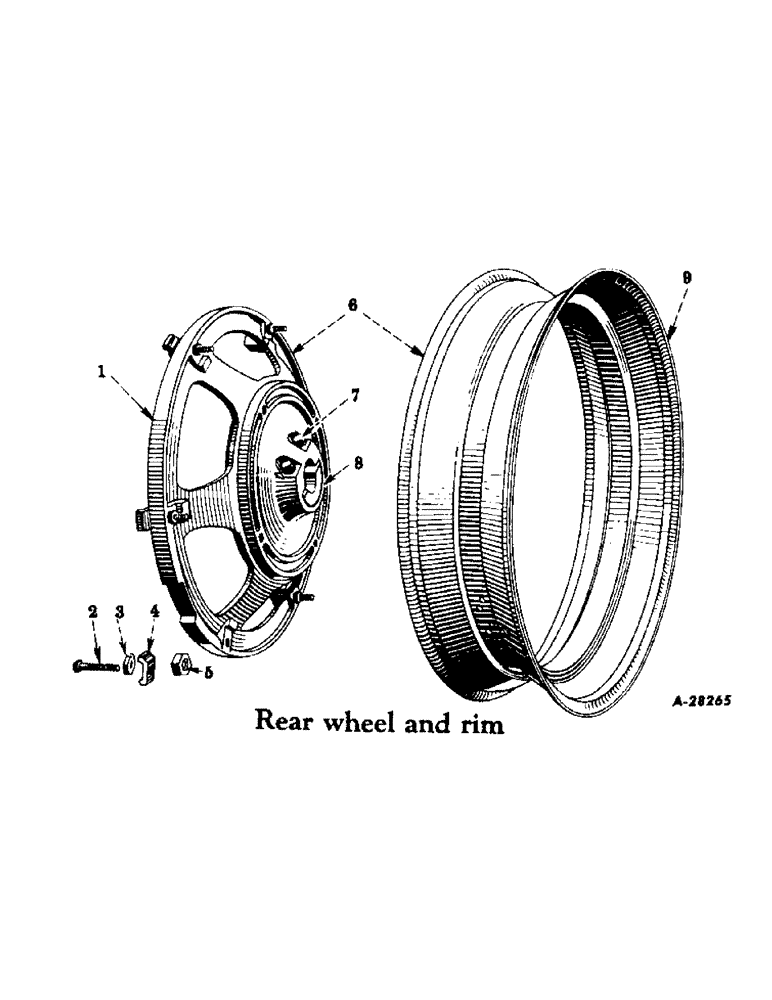

Запчасти Case IH SUPER M (328) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, SUPER "M" AND "MDV" (12) - CHASSIS

1

6325DE

WHEEL, rear (used with all rims)

2шт.

179961

SCREW, cap, hex-hd., 3/4-10NC x 4-1/4"

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x no. 14 ga.

8шт.

1

355439R1

WHEEL, drive (tractors equipped with cotton picker mounting and cotton picker tractor attachment)

2шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp (used with clamp, 48984D)

12шт.

3

351833R1

NUT

jam, rear wheel rim mounting

12шт.

4

48984D

CLAMP

rear wheel rim

24шт.

5

351832R1

NUT

rear wheel rim mounting

12шт.

6

355042R91

2шт.

WHEEL, rear, w/rim, assembly, DW11-38, 11-38, 12-38, 13-38 (composed of (6) bolt 48985DA, (1) clamp 6326DC (12) clamp 48984D 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (4) screw 179961, (4) washer 103326, (4) washer Q3478, (1) wheel 6325DE)

1шт.

6

355028R92

2шт.

WHEEL, drive, w/rim, assembly, DW11-38, 11-38, 12-38 (tractors equipped with cotton picker mounting or cotton picker tractor attachment) (composed of (6) bolt 48985DA, (4) bolt 355441R1, (12) clamp 48984D, (2) clamp 355440R1, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (1) wheel 355439R1)

1шт.

6

359215R91

WHEEL, drive, w/rim, assembly, DW12-38, 13-38 (composed of (6) bolt 48985DA (1) clamp 6326DC, (12) clamp 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 359221R91, (4) screw 179961, (4) washer 103326, (4) washer Q3478, (1) wheel 6325DE)

2шт.

7

179961

Follows reference no. 1

1шт.

8

6326DC

CLAMP

rear wheel hub (used on wheel, 6325DE)

2шт.

8

355440R2

CLAMP

hub, drive wheel (used on wheel, 355439R1) (Replaces 355440R1)

4шт.

355441R1

BOLT

rear wheel hub clamp (used on wheel, 355439R1)

8шт.

9

55564D

RIM, rear wheel (1 piece), DW11-38, 11-38, 12-38, 13-38

2шт.

9

359221R91

RIM, rear wheel (1 piece), DW12-38, 13-38

2шт.
