(436) - ATTACHMENTS, REAR WHEEL EXTENSION TIRE, SPECIAL, SUPER "M" AND "MD"

Запчасти Case IH SUPER M (436) - ATTACHMENTS, REAR WHEEL EXTENSION TIRE, SPECIAL, SUPER "M" AND "MD" Attachments

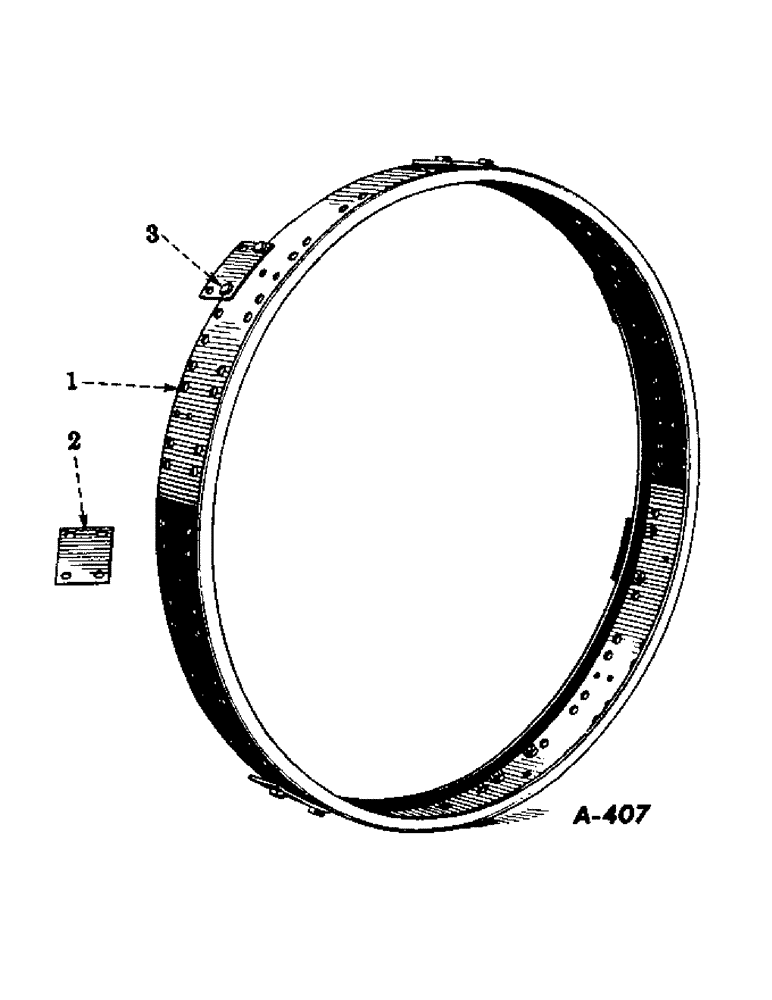

Схема запчастей Case IH SUPER M - (436) - ATTACHMENTS, REAR WHEEL EXTENSION TIRE, SPECIAL, SUPER "M" AND "MD" Attachments
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

49236DB

ATTACHMENT - rear wheel extension tire (for tractors equipped steel rear wheels)

1шт.

1

49212DB

TIRE, extension, rear wheel

2шт.

2

57172D

PLATE, fastening, rear wheel extension tire (used under lugs)

14шт.

3

63138D

BOLT, spade lug

28шт.

114820

NUT, hex., 5/8" - 11NC

28шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.
