(90.110.01) - FENDERS AND REAR BODY PANELS

Запчасти Case IH SCOUT (90.110.01) - FENDERS AND REAR BODY PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

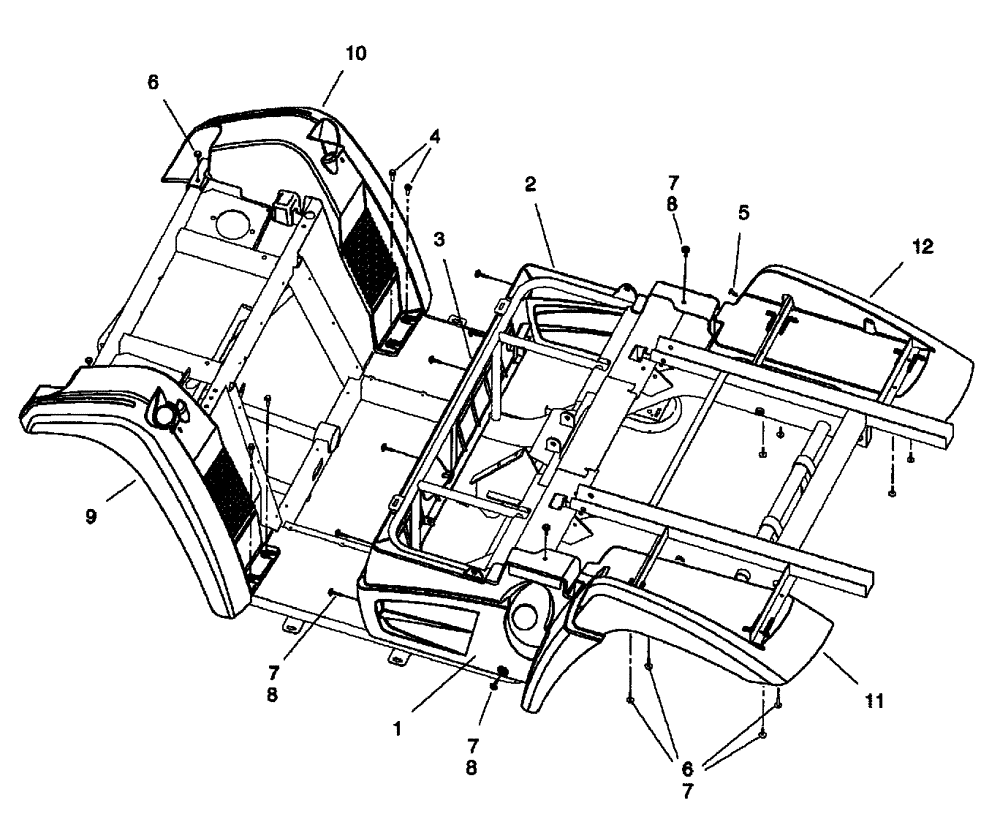

Схема запчастей Case IH SCOUT - (90.110.01) - FENDERS AND REAR BODY PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
9
11
7
12
7
7
8
8
5
1
10
6
8
2
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103050801

PANEL

Left Hand

1шт.

2

CLC103050901

PANEL

Right Hand

1шт.

3

CLC103051001

PANEL

Center

1шт.

4

CLC103400001

RIVET

4шт.

5

CLC102025701

SCREW

4шт.

6

CLC102296530

SCREW

10шт.

7

CLC102296601

NUT

18шт.

8

CLC102297125

SCREW

10шт.

9

CLC103050401

FRONT FENDER

Left Hand

1шт.

10

CLC103050501

FRONT FENDER

Right Hand

1шт.

11

CLC103050601

REAR FENDER

Left Hand

1шт.

11

CLC103050602

REAR FENDER

Left Hand, Camo, Real Tree Hard Wood

1шт.

12

CLC103050701

REAR FENDER

Right Hand

1шт.

12

CLC103050702

REAR FENDER

Right Hand, Camo, Real Tree Hard Wood

1шт.

13

CLC103441501

MUDFLAP

Common, (Not Shown)

2шт.
