(88.106.02) - DIA KIT, REAR DIFFERENTIAL ROCK GUARD

Запчасти Case IH SCOUT XL (88.106.02) - DIA KIT, REAR DIFFERENTIAL ROCK GUARD (88) - ACCESSORIES

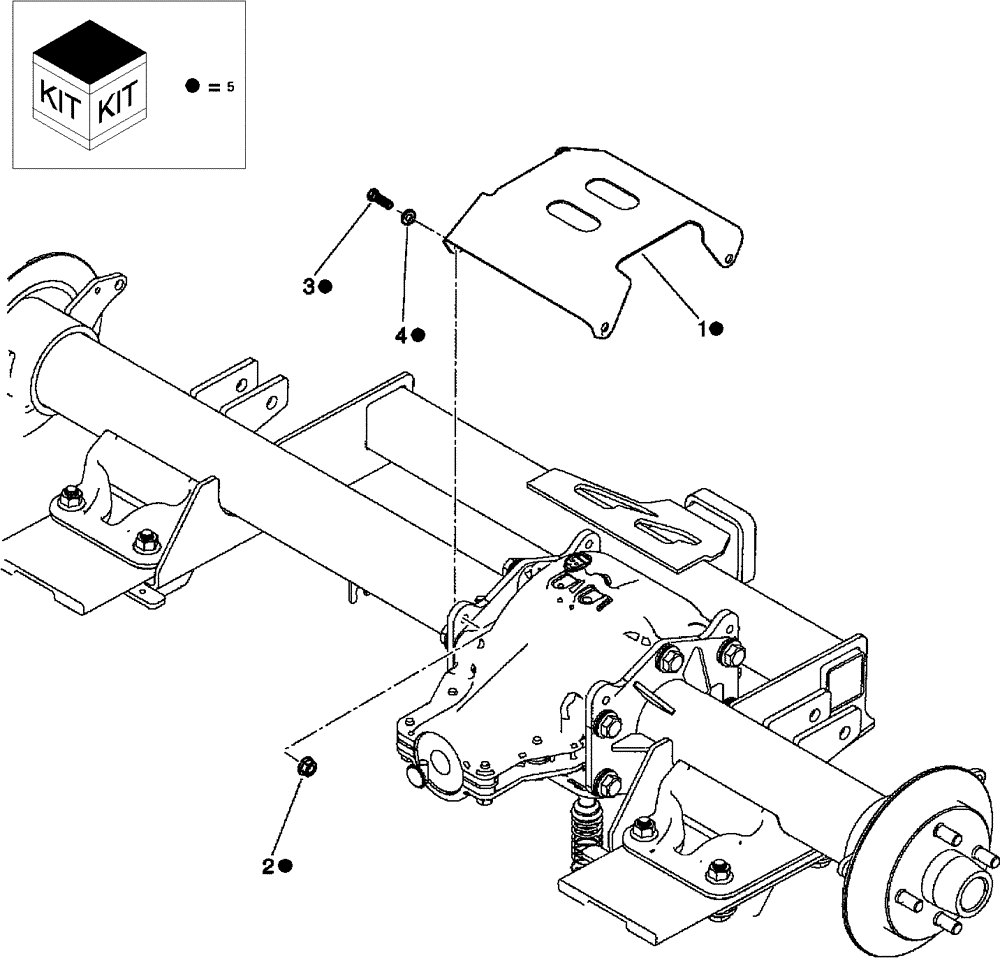

Схема запчастей Case IH SCOUT XL - (88.106.02) - DIA KIT, REAR DIFFERENTIAL ROCK GUARD (88) - ACCESSORIES
2
5
5
5
5
5
5
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC102709501

GUARD

Rear Differential

1шт.

2

CLC102298401

NUT

4шт.

3

CLC102490201

BOLT

4шт.

4

CLC96741038

WASHER

4шт.

5

CLC102709701

DIA KIT, ADD PROD

Rear Differential Rock Guard, Inc. 1-4

1шт.

Выбрано товаров: 5
