(21.184.01) - FRONT DIFFERENTIAL MOUNTING PLATE

Запчасти Case IH SCOUT XL (21.184.01) - FRONT DIFFERENTIAL MOUNTING PLATE (21) - TRANSMISSION

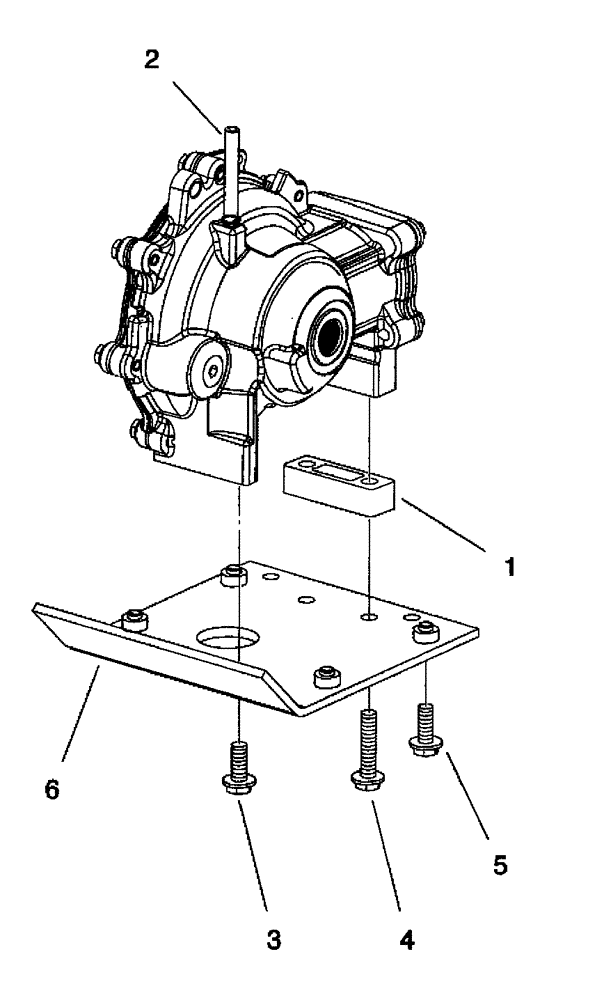

Схема запчастей Case IH SCOUT XL - (21.184.01) - FRONT DIFFERENTIAL MOUNTING PLATE (21) - TRANSMISSION
2
1
5
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC102381701

SPACER

Differential

1шт.

2

CLC102462401

HOSE

Front Differential

1шт.

3

CLC102491001

BOLT

2шт.

4

CLC102491101

BOLT

2шт.

5

CLC102711601

FLANGE BOLT

4шт.

6

CLC103244701

MOUNTING PLATE

Differential

1шт.

Выбрано товаров: 6
