(35.210.01) - CONTROL VALVE (GROUP 350-1-ND135224)

Запчасти Case DV210 (35.210.01) - CONTROL VALVE (GROUP 350-1-ND135224) (35) - HYDRAULIC SYSTEMS

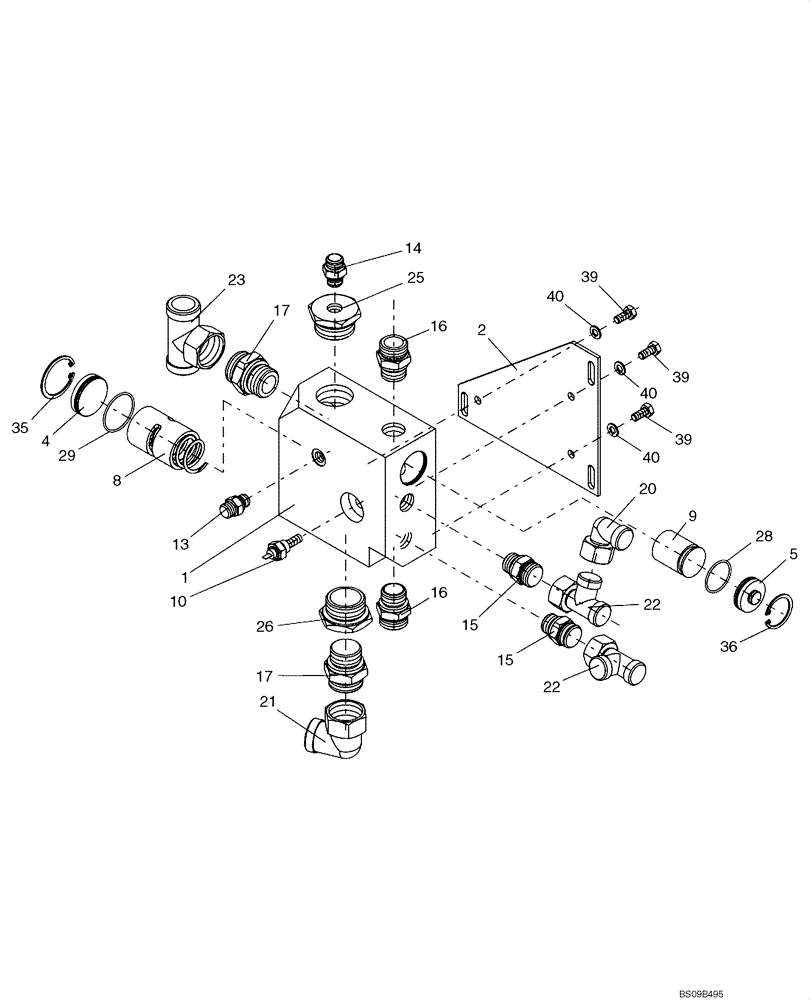

Схема запчастей Case DV210 - (35.210.01) - CONTROL VALVE (GROUP 350-1-ND135224) (35) - HYDRAULIC SYSTEMS
9
39
10
28
8
25
29
26
17
39
21
16
2
15
4
14
39
40
1
13
22
23
35
5
22
15
40
36
20
16
40
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND133905

CONTROL VALVE

VALVE, CONTROL

1шт.

2

ND135219

BRACKET

BRACKET

1шт.

4

ND133906

PLUG

PLUG

1шт.

5

ND134685

PLUG

PLUG

1шт.

8

ND064457

THERMOSTAT

1шт.

9

ND067823

SPOOL

SPOOL

1шт.

10

ND110258

TEMPERATURE SENDER

SENDER, TEMPERATURE

1шт.

13

ND062130

FITTING

CONNECTOR

1шт.

14

ND062154

HYD CONNECTOR

1шт.

15

ND062131

FITTING

CONNECTOR

2шт.

16

ND062161

HYD CONNECTOR

2шт.

17

ND062162

HYD CONNECTOR

2шт.

20

ND062368

ELBOW

ELBOW

1шт.

21

ND062310

COUPLING

1шт.

22

ND062263

TEE

TEE

2шт.

23

ND134019

TEE

TEE

3шт.

25

ND134647

REDUCER

REDUCER

1шт.

26

ND134648

REDUCER

REDUCER

1шт.

28

ND079890

O-RING,34mm ID x 2mm Width

O-RING

1шт.

29

ND079894

O-RING,42mm ID x 2mm Width

O-RING

1шт.

32

ND073356

PACKING RING

1шт.

35

ND069877

SNAP RING

RING, SNAP

1шт.

36

ND069881

RING, SNAP

RING SNAP

1шт.

39

ND110079

BOLT

3шт.

40

ND035940

SPRING WASHER

SPRING

3шт.
