(35.700.01) - HYDRAULIC PUMP (GROUP 105B-ND142591)

Запчасти Case DV210 (35.700.01) - HYDRAULIC PUMP (GROUP 105B-ND142591) (35) - HYDRAULIC SYSTEMS

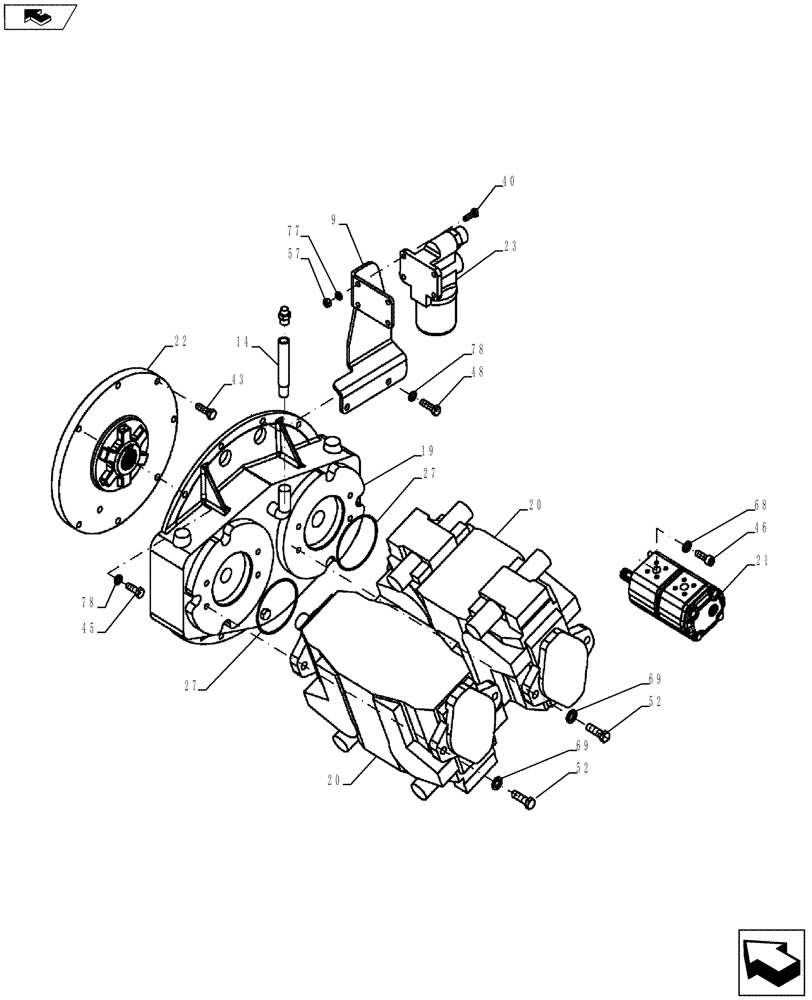

Схема запчастей Case DV210 - (35.700.01) - HYDRAULIC PUMP (GROUP 105B-ND142591) (35) - HYDRAULIC SYSTEMS
40
19
43
27
52
68
57
27
20
78
52
20
46
9
home
45
77
78
48
14
21
69
69
23
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pump, Main Hydraulic, (ND142591) (Group105)

1шт.

9

ND142630

BRACKET

Oil Filter Mounting

1шт.

14

ND131493

ADAPTER

1шт.

19

ND123495

GEARBOX

1шт.

20

ND124374

HYDRAULIC PUMP

2шт.

21

ND146230

HYDRAULIC PUMP

1шт.

22

ND123493

SPLINED COUPLING

, Serial Range: -NDNTL2180

1шт.

22

ND146651

SPLINED COUPLING

, Start Serial: NDNTL2181

1шт.

23

ND141635

FILTER ASSY

, Serial Range: -NDNTL2180

1шт.

23

ND148515

FILTER ASSY

, Start Serial: NDNTL2181

1шт.

27

ND079915

RING

2шт.

40

ND021295

BOLT

4шт.

43

ND021301

BOLT

8шт.

45

ND021303

BOLT

10шт.

46

ND024259

BOLT

2шт.

48

ND021304

BOLT

1шт.

52

ND021208

BOLT

6шт.

57

ND021848

NUT

4шт.

68

ND029266

WASHER

2шт.

69

ND029267

WASHER

4шт.

77

ND035940

SPRING WASHER

9шт.

78

ND035941

WASHER

1шт.
