(39.100.01[06]) - NOISE REDUCTION (GROUP 207-ND142646)

Запчасти Case DV210 (39.100.01[06]) - NOISE REDUCTION (GROUP 207-ND142646) (39) - FRAMES AND BALLASTING

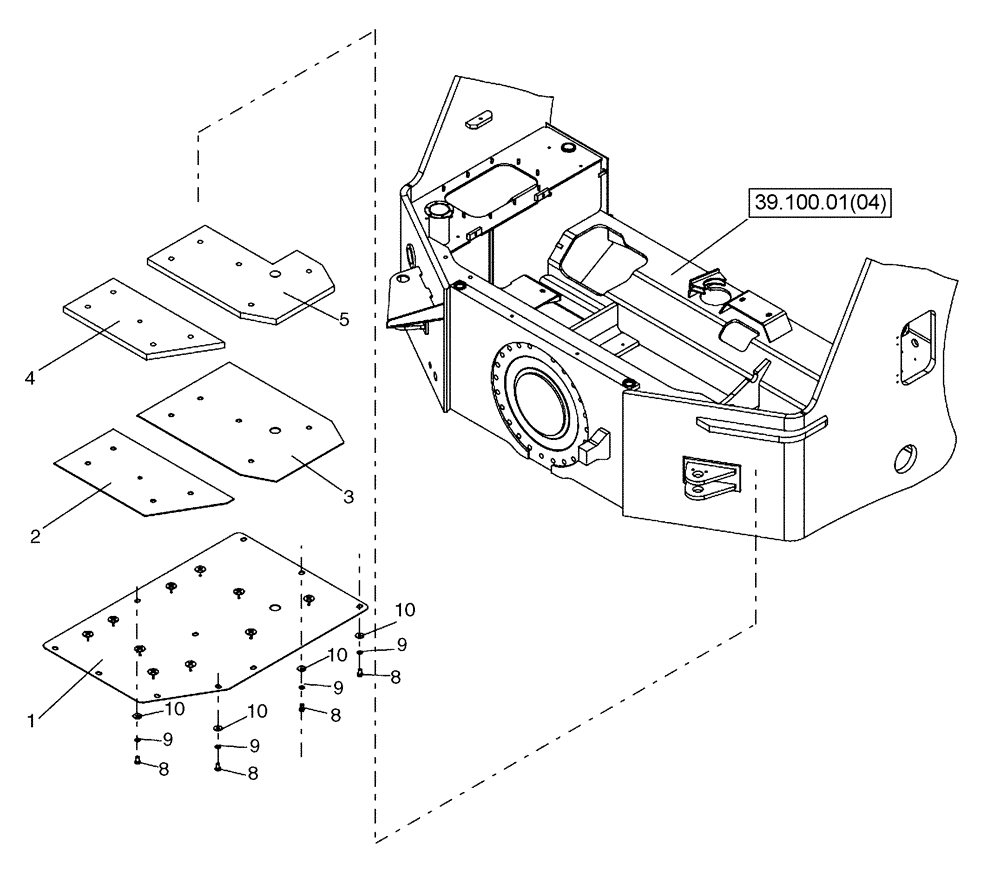

Схема запчастей Case DV210 - (39.100.01[06]) - NOISE REDUCTION (GROUP 207-ND142646) (39) - FRAMES AND BALLASTING
8
9
10
9
1
9
8
8
10
10
10
8
39.100.01(04)
9
2
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND142647

COVER PLATE

PLATE, COVER

1шт.

2

ND142201

INSULATION

INSULATION

1шт.

3

ND142202

INSULATION

INSULATION

1шт.

4

ND142203

INSULATION

INSULATION

1шт.

5

ND142204

INSULATION

INSULATION

1шт.

8

ND021293

BOLT

10шт.

9

ND029283

WASHER

10шт.

10

ND035940

SPRING WASHER

SPRING

10шт.
