(39.104.01[02]) - ARTICULATION JOINT SLEW (GROUP 65-1-ND125961)

Запчасти Case DV210 (39.104.01[02]) - ARTICULATION JOINT SLEW (GROUP 65-1-ND125961) (39) - FRAMES AND BALLASTING

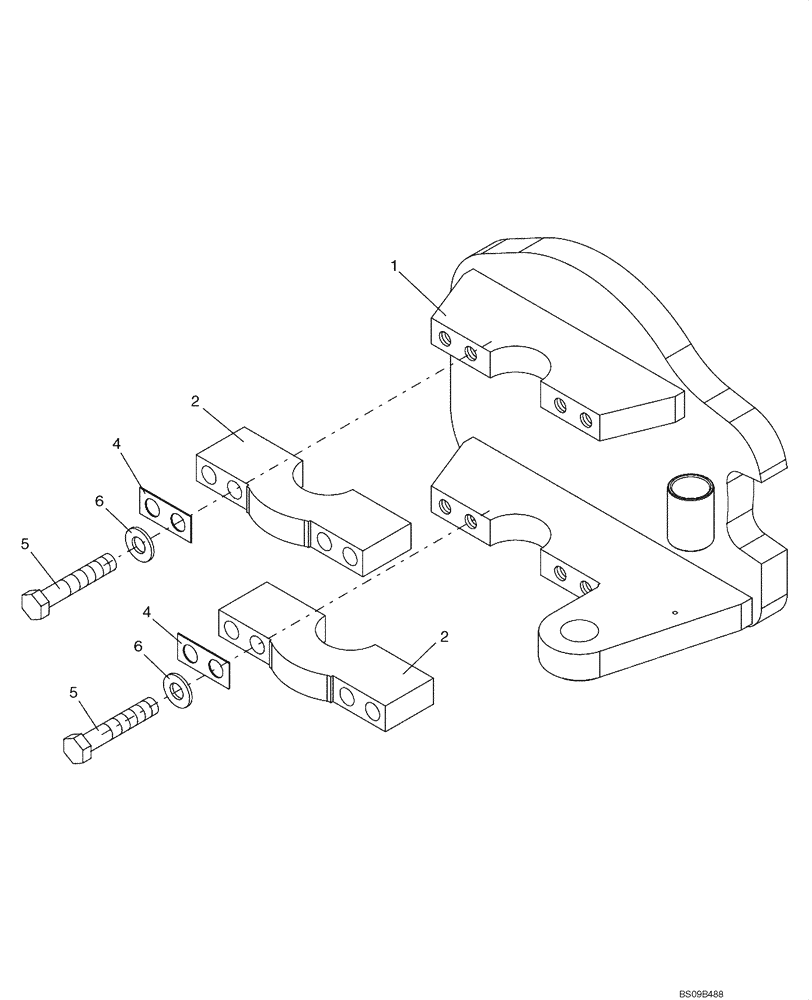

Схема запчастей Case DV210 - (39.104.01[02]) - ARTICULATION JOINT SLEW (GROUP 65-1-ND125961) (39) - FRAMES AND BALLASTING
4
2
6
2
5
6
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND127495

BRACKET

BRACKET

1шт.

2

ND125922

YOKE

YOKE

2шт.

4

ND125960

SPACER

SPACER

4шт.

5

ND021248

BOLT

8шт.

6

ND035944

WASHER

8шт.

Выбрано товаров: 5
