(90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431)

Запчасти Case DV210 (90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS

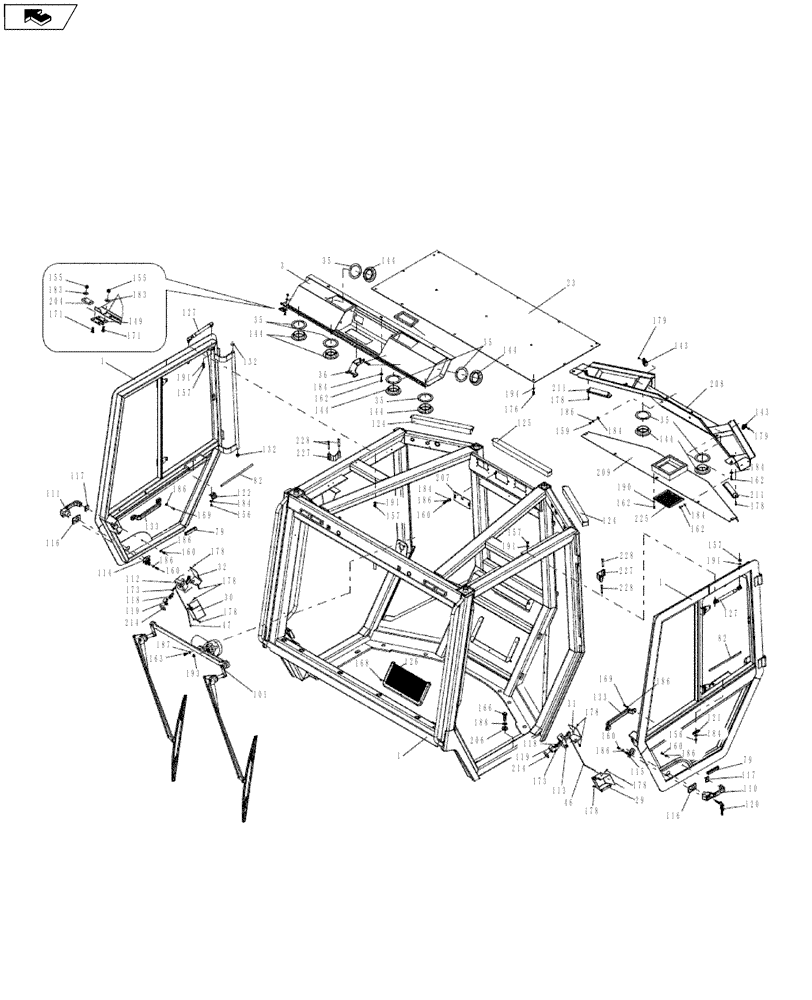

Схема запчастей Case DV210 - (90.150.01[01]) - CAB DOORS (GROUP 165A-ND129431) (90) - PLATFORM, CAB, BODYWORK AND DECALS
160
144
214
178
118
121
162
31
30
112
227
35
157
211
207
132
155
178
127
82
191
228
149
124
186
186
117
171
119
228
124
143
122
32
133
178
178
191
116
211
186
47
29
227
183
184
159
178
119
156
118
127
3
111
117
home
187
1
208
163
133
36
35
171
160
115
110
143
156
79
169
168
101
214
23
35
209
114
186
155
186
160
184
162
144
179
184
191
179
82
193
125
1
144
228
157
1
178
162
144
183
157
166
162
184
35
186
144
188
173
173
160
46
178
190
184
35
176
79
194
186
120
126
225
157
169
191
186
204
113
160
184
206
178
184
144
116
132
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND129432

CAB

Cab Weldment

1шт.

3

ND129442

PLENUM

PLENUM

1шт.

23

ND129470

HEADLINER

HEADLINER

1шт.

29

ND129453

SHIELD

SHIELD, LH

1шт.

30

ND129485

SHIELD

SHIELD, RH

1шт.

31

ND129452

SHIELD

SHIELD, LH

1шт.

32

ND129489

SHIELD

SHIELD, RH

1шт.

35

ND134446

WASHER

8шт.

36

ND129441

BRACKET

BRACKET

1шт.

46

ND129449

ROD

ROD, PULL

1шт.

47

ND129484

ROD

ROD, PULL

1шт.

79

ND138147

PROFILE

PROFILE, RUBBER

1шт.

82

ND132379

PACKING

PACKING

1шт.

101

ND129049

WINDSHIELD WIPER

WIPER, WINDSHIELD

1шт.

110

ND101385

HANDLE

LH DOOR

1шт.

111

ND101386

HANDLE

RH DOOR

1шт.

112

ND101387

LEVER

1шт.

113

ND101388

LEVER

1шт.

114

ND101389

LOCK

1шт.

115

ND101390

LOCK

1шт.

116

ND101391

WASHER

2шт.

117

ND101392

WASHER

2шт.

118

ND101393

PIN

STRIKER

2шт.

119

ND101394

COVER

2шт.

120

ND101395

KEY

KEY, LOCK

2шт.

121

ND129283

SPRING

SPRING

3шт.

122

ND117195

SPRING

SPRING

2шт.

124

ND129039

SUNSHADE

SUNSHADE

2шт.

125

ND063885

SUNSHADE

1шт.

126

ND064533

NET

1шт.

127

ND129045

GAS STRUT

GAS STRUT

2шт.

132

ND129153

PLUG

PLUG

8шт.

133

ND078409

HANDLE

GRAB

2шт.

139

ND078445

SECURING STRAP

Not Illustrated

16шт.

140

ND078500

COVER PLATE

PLATE, COVER; Not Illustrated

12шт.

141

ND078516

COVER PLATE

PLATE, COVER; Not Illustrated

27шт.

143

ND089998

COAT HOOK

COAT

2шт.

144

ND089999

RING

LOUVER

8шт.

149

ND064542

HINGE

HINGE

3шт.

155

ND107948

LOCK NUT

10шт.

156

ND027300

NUT

4шт.

157

ND027301

NUT

10шт.

159

ND021287

BOLT,M8 x 16

35шт.

160

ND021288

BOLT

31шт.

162

ND021290

BOLT

8шт.

163

ND021294

BOLT

5шт.

168

ND024108

BOLT

BOLT

9шт.

169

ND024135

BOLT

10шт.

171

ND024373

BOLT

12шт.

173

ND024383

SCREW,99mm

4шт.

176

ND024444

SCREW,M6 x 20mm

SCREW

9шт.

178

ND024967

SELF-TAP SCREW

SELF TAPPING

18шт.

179

ND025006

SELF-TAP SCREW

4шт.

183

ND029289

WASHER

6шт.

184

ND029290

WASHER

60шт.

186

ND118926

WASHER

SPRING

76шт.

187

ND035940

SPRING WASHER

SPRING

7шт.

188

ND035943

WASHER

18шт.

190

ND029248

WASHER

12шт.

191

ND029249

WASHER

8шт.

193

ND029322

WASHER

WASHER

1шт.

194

ND037448

WASHER

WASHER

9шт.

204

ND131494

SPACER

SPACER

3шт.

206

ND132329

WASHER

WASHER

18шт.

207

ND132332

COVER PLATE

PLATE, COVER

1шт.

208

ND132677

HOOD

HOOD

1шт.

209

ND132676

HEADLINER

HEADLINER

1шт.

211

ND127866

LOUVER

LOUVER

2шт.

214

ND132682

NUT

NUT

2шт.

215

ND133478

PACKING

PACKING, RUBBER

25шт.

225

ND140683

GRATING

GRATING

1шт.

227

ND117114

BELT

2шт.

228

ND051029

PIN

4шт.
