(05.100.03[01]) - FILTERS, DV45

Запчасти Case DV45CC (05.100.03[01]) - FILTERS, DV45 (05) - SERVICE & MAINTENANCE

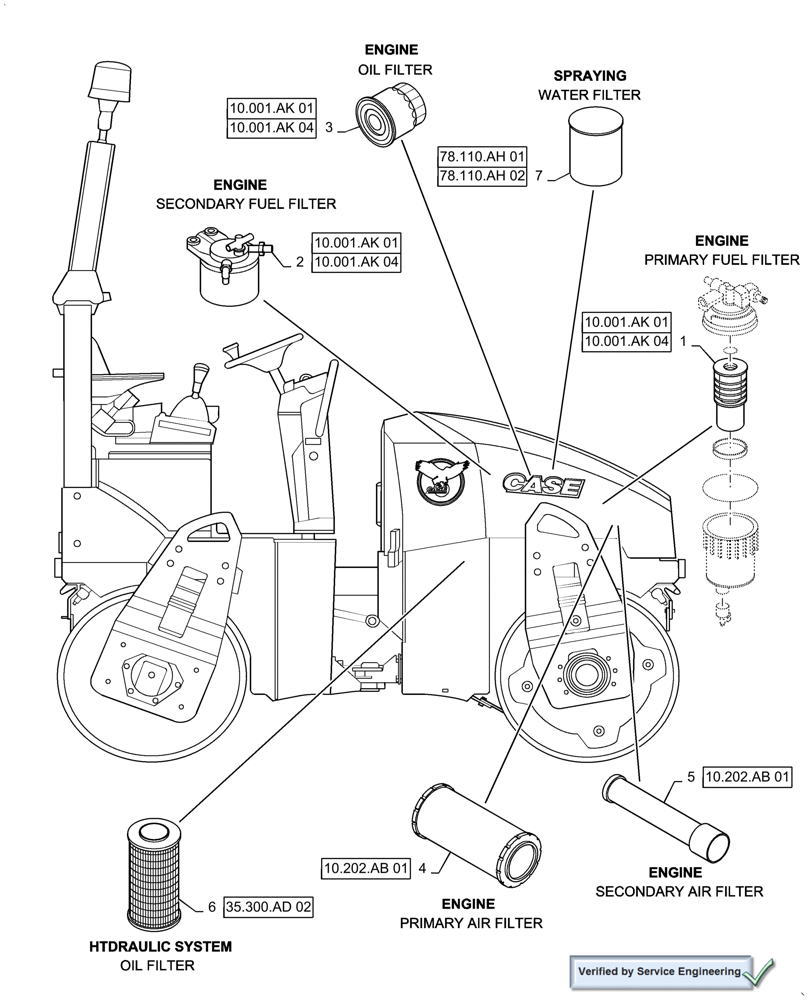

Схема запчастей Case DV45CC - (05.100.03[01]) - FILTERS, DV45 (05) - SERVICE & MAINTENANCE
35.300.ad 02
2
6
7
5
4
3
1
78.110.ah 02
78.110.ah 01
10.001.ak 04
10.001.ak 04
10.001.ak 04
10.202.ab 01
10.202.ab 01
10.001.ak 01
10.001.ak 01
10.001.ak 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47419947

ELEMENT

Primary, Element

1шт.

2

47420120

FUEL FILTER

Secondary, Spin-On

1шт.

3

47420082

ENGINE OIL FILTER

Spin-On

1шт.

4

47421040

AIR FILTER

Primary

1шт.

5

47522064

AIR FILTER

Secondary

1шт.

6

47529579

HYDRAULIC OIL FILTER

Hyd Oil

1шт.

7

47405568

FILTER STRAINER

Water System

1шт.

Выбрано товаров: 7
