/ / / / / / / / (90.114.01[02]) - RAILING (GROUP 180-ND145758)

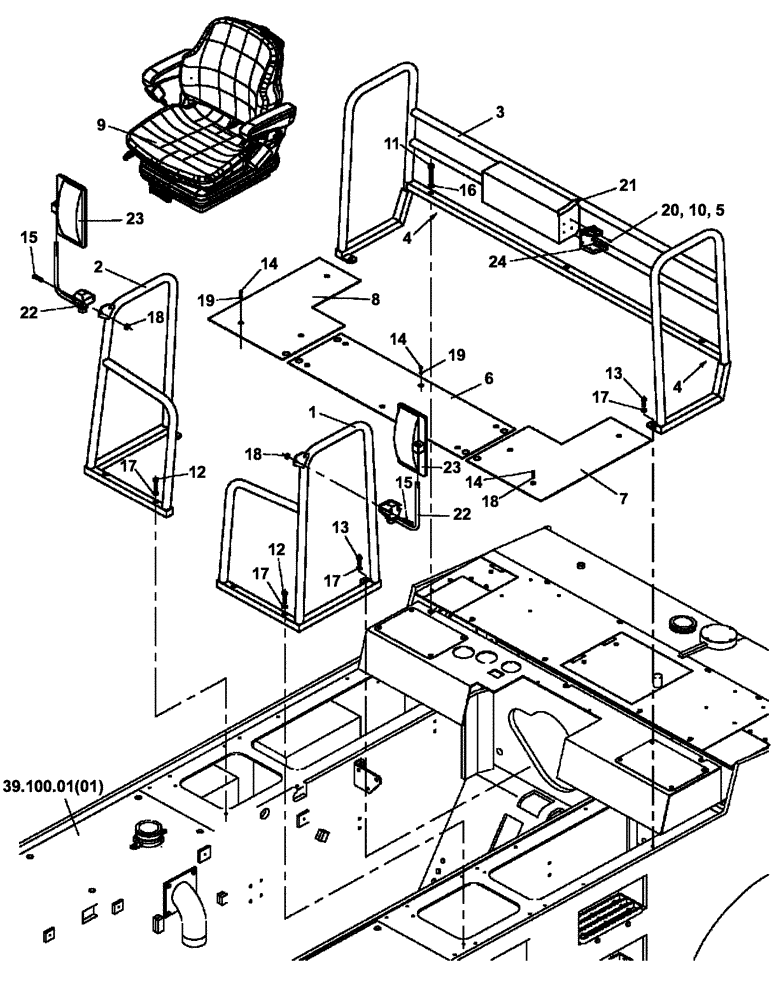

Запчасти Case PT240 (90.114.01[02]) - RAILING (GROUP 180-ND145758) (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case PT240 - (90.114.01[02]) - RAILING (GROUP 180-ND145758) (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://www.partsell.ru/storage/images/casece/28.png)
14
18
11
20
21
14
7
3
5
13
4
18
22
1
2
14
17
19
18
10
23
24
15
4
17
23
39.100.01(01)
16
22
12
19
13
17
6
9
15
12
8
17
1
ND012104
HANDRAIL
1шт.
2
ND012106
HANDRAIL
1шт.
3
ND012108
HANDRAIL
1шт.
4
ND110882
SEALING STRIP
1шт.
5
ND029306
WASHER
4шт.
6
ND031944
COVER PLATE
1шт.
7
ND145230
COVER PLATE
1шт.
8
ND145231
COVER PLATE
1шт.
9
ND121795
SEAT COVER
Vinyl; Canopy Only
2шт.
10
ND026413
NUT
4шт.
11
ND021211
BOLT
3шт.
12
ND021199
BOLT
4шт.
13
ND021302
BOLT
4шт.
14
ND021287
BOLT,M8 x 16
12шт.
15
ND024137
BOLT
4шт.
16
ND029251
WASHER
3шт.
17
ND029250
WASHER
8шт.
18
ND021847
NUT
4шт.
19
ND029309
SPRING WASHER
12шт.
20
ND024366
SCREW,M4 x 16mm
4шт.
21
ND090001
SUPPORT
1шт.
22
ND064427
BRACKET
2шт.
23
ND064408
MIRROR
2шт.
