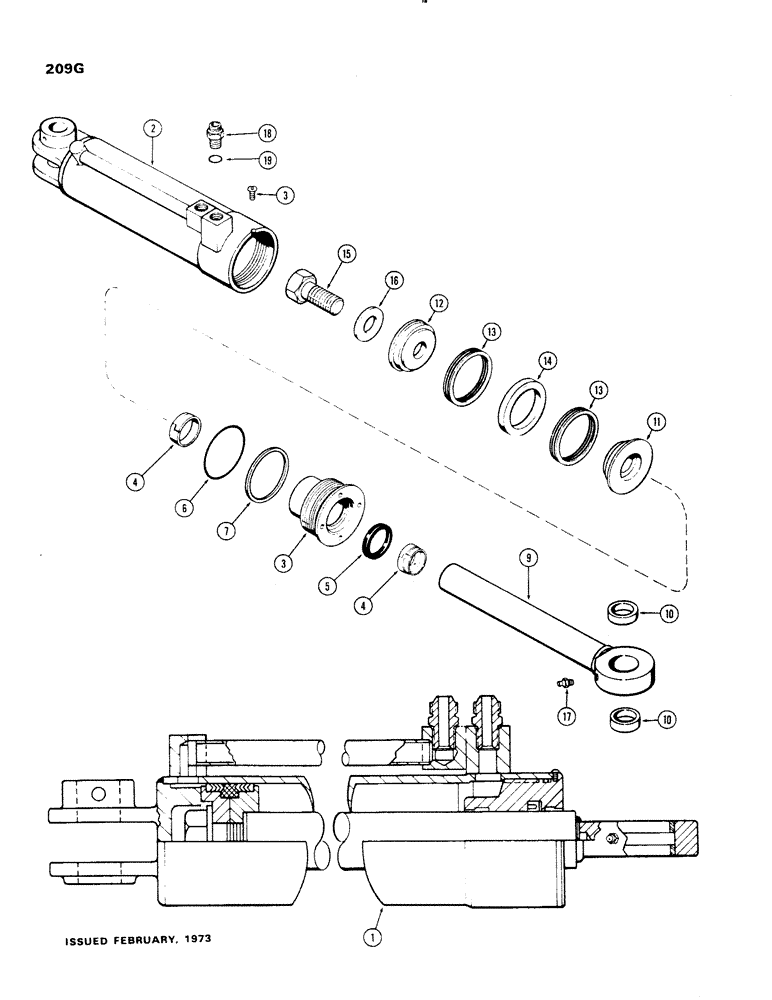

Запчасти Case 1150 (209G) - G31961 AND G31962 CLAM CYLINDERS, 4" DIA. CYLINDER WITH 10" STROKE USED WITH D42910 DROTT (07) - HYDRAULIC SYSTEM

G31962

CYLINDER ASSY. - clam, right hand (Order G32672) (See Figure 209E), Includes: Ref. 2 - 19

1шт.

G31961

CYLINDER ASSY. - clam, left hand (Order G32671) (See figure 209E), Includes: Ref. 2 - 19

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE - cylinder body, right hand

1шт.

2

G31965

HYD TUBE

TUBE - cylinder body, left hand

1шт.

3

G31963

GLAND - (w/o identification ring)

1шт.

4

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

5

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

7

D36095

BACK-UP RING

- gland "O" ring back-up

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

9

G31974

ROD

ASSY. - piston (2-1/4" dia.) (w/o identification ring) (Order Rod Assy. G33626, Piston G33159 and Gland Assy. G33640), Includes: Ref. 10

1шт.

10

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

11

D46424

PISTON

- split (rod end) (w/o identification ring)

1шт.

12

D46930

PISTON

- split (bolt end)

1шт.

13

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

14

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

15

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

16

D32351

WASHER - piston bolt (1-3/8 x 2-1/2 x 9/64")

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

18

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Assy, Incl. Ref. 19 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector (3/4 x 1 x 1/8")

1шт.
