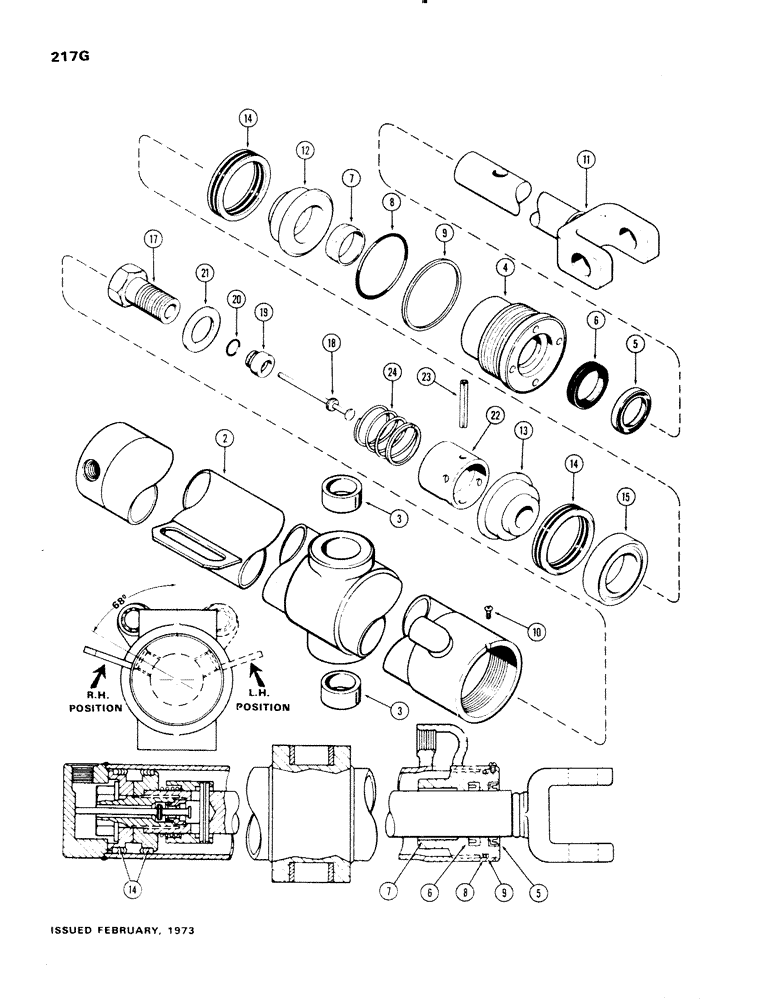

Запчасти Case 1150 (217G) - G32715 AND G32716 DOZER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER (07) - HYDRAULIC SYSTEM

G32715

X

CYLINDER ASSY. - lift, right hand (Order G33521 cylinder) (See figure 217I), Includes: Ref. 2 - 24

1шт.

G32716

X

CYLINDER ASSY. - lift, left hand (Order G33522 cylinder) (See figure 217I), Includes: Ref. 2 - 24

1шт.

2

D49360

TUBE

ASSY. - right hand (w/68 deg. port) (See inset), Includes: Ref. 3

1шт.

2

D49361

TUBE ASSY. - left hand (w/68 deg. port) (See Inset), Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G32743

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/out identification ring)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32298

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G32298

1шт.

7

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of seal kit cylinder repair P/N G32298

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32298

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32298

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G32717

ROD - piston (1-3/4" dia.) (w/o identification ring) (Order Rod G33523, Piston G33525) and Gland Assy. G33569) (See figure 217I)

1шт.

12

D46387

PISTON - split (rod end) (w/o identification ring)

1шт.

13

D46388

PISTON

- split (bolt end)

1шт.

14

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" Type)

2шт.

Part of seal kit cylinder repair P/N G32298

1шт.

15

D47208

RING

- center bearing

1шт.

G32721

VALVE

ASSY. - check, Includes: Ref. 17 - 20

1шт.

17

G32723

BOLT

BODY - check valve & piston bolt

1шт.

18

G32724

POPPET - valve (Pin Type)

1шт.

19

G32722

BUSHING

SEAT - valve poppet

1шт.

20

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - seat (5/8 x 3/4 x 1/16")

1шт.

21

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

22

G32719

BLOCK - stop, cushion

1шт.

23

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Block to rod 3/8" x 2 1/2", Slotted

1шт.

24

G32720

SPRING

- cushion (2-1/8" free length)

1шт.

G32298

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9 and 14

1шт.
