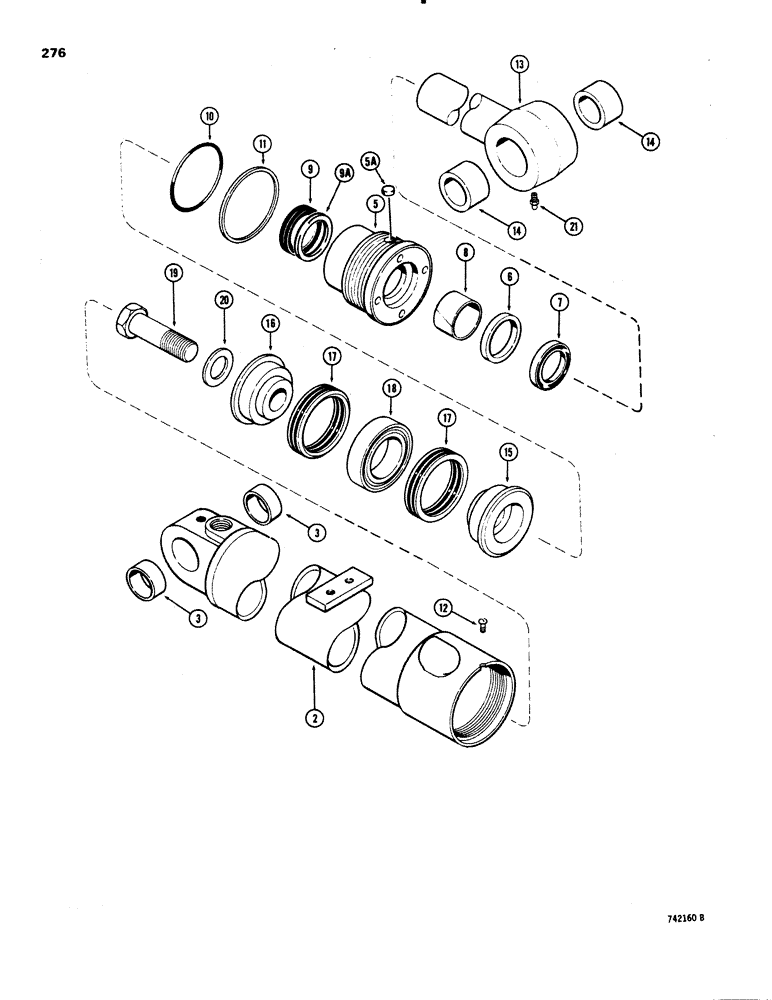

Запчасти Case 1150C (276) - G34836 AND G34837 LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G34836

CYLINDER

ASSEMBLY - lift, right-hand, 5" (127 mm) diameter x 31-1/2" (800 mm) stroke, not shown, Includes: Ref. 3 - 21

1шт.

1

G34837

CYLINDER

ASSEMBLY - lift, left-hand, 5" (127 mm) diameter x 31-1/2" (800 mm) stroke, not shown, Includes: Ref. 3 - 21

1шт.

2

G34838

TUBE,40.99" L

- G34836 cylinder, Includes: Ref. 3

1шт.

2

G34839

TUBE

- G34837 cylinder, Includes: Ref. 3

1шт.

3

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube

2шт.

G34726

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G120569

PLUG - nylon, thread-locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

9

D39359

RUBBER SEAL

U-CUP SEAL - piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

Part of seal kit P/N G100779

1шт.

9a

G103447

RING

SEAL - piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

10

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

11

S92639

RING

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylin plug is used

1шт.

13

G34098

ROD

- piston, 2-1/4" (57 mm) diameter, Includes: Ref. 14

1шт.

14

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

15

D46426

PISTON

- split, rod end

1шт.

16

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split, bolt end

1шт.

17

D47206

PACKING

- piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105530 same as G34752 kit plus ref. 9A above

1шт.

18

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center, packing

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105530

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 9A, 10, 11 and 17 same as G34752 kit plus ref. 9A above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G100779

SEAL

- rod, service option - severe heat or cold

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
