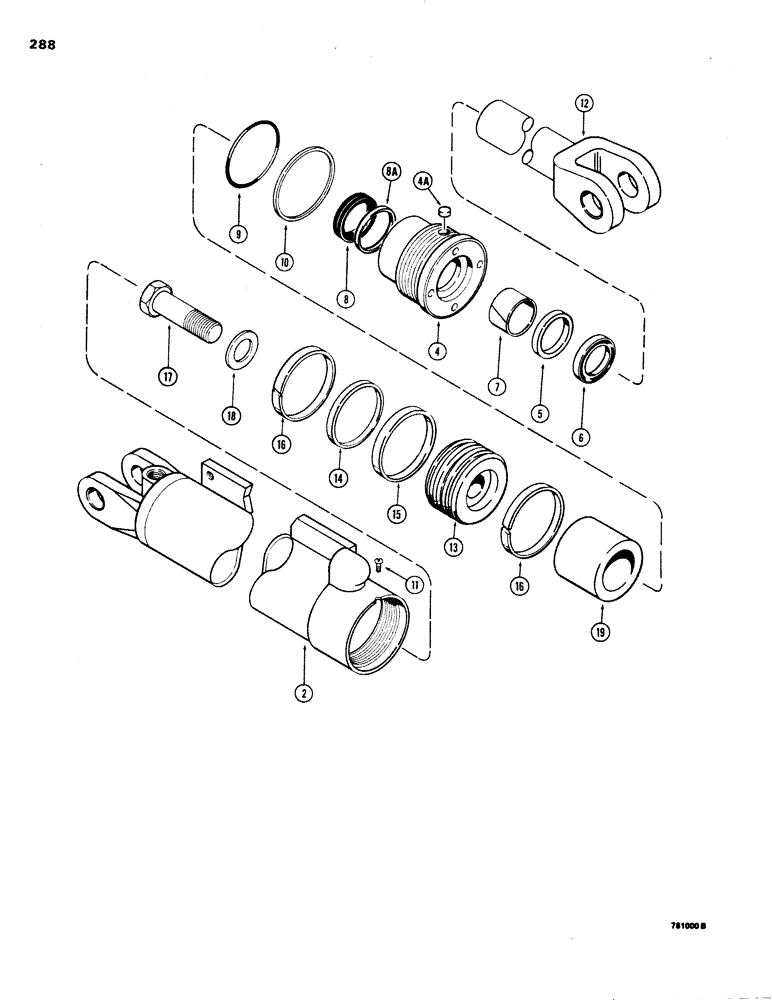

Запчасти Case 1150C (288) - G101268 AND G101269 DOZER TILT CYLINDERS, ATP DOZER MODELS (08) - HYDRAULICS

1

G101268

CYLINDER

ASSEMBLY - tilt, right-hand, 4" (102 mm) diameter x 5-1/4" (133 mm) stroke, not shown, Includes: Ref. 2 - 19

1шт.

1

G101269

CYLINDER

ASSEMBLY - tilt, left-hand, 4" (102 mm) diameter x 5-1/4" (133 mm) stroke, not shown, Includes: Ref. 2 - 19

1шт.

2

G34058

TUBE

- G101268 cylinder

1шт.

2

G34059

TUBE

- G101269 cylinder

1шт.

G104941

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

8

D39359

RUBBER SEAL

U-CUP SEAL - piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G100779

1шт.

Part of seal kit P/N G105556

1шт.

8a

G103447

RING

SEAL - piston rod, narrow, used in addition to ref. 8 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

12

G34054

ROD

- piston, 2-1/4" (57 mm) diameter

1шт.

13

G100686

PISTON

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105556

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

G34056

BUSHING

SPACER - piston and gland

1шт.

G105556

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 14, 15 and 16 same as G102412 kit plus ref. 8A above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G100779

SEAL

- rod, service option - severe heat or cold, Includes Ref 8

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
