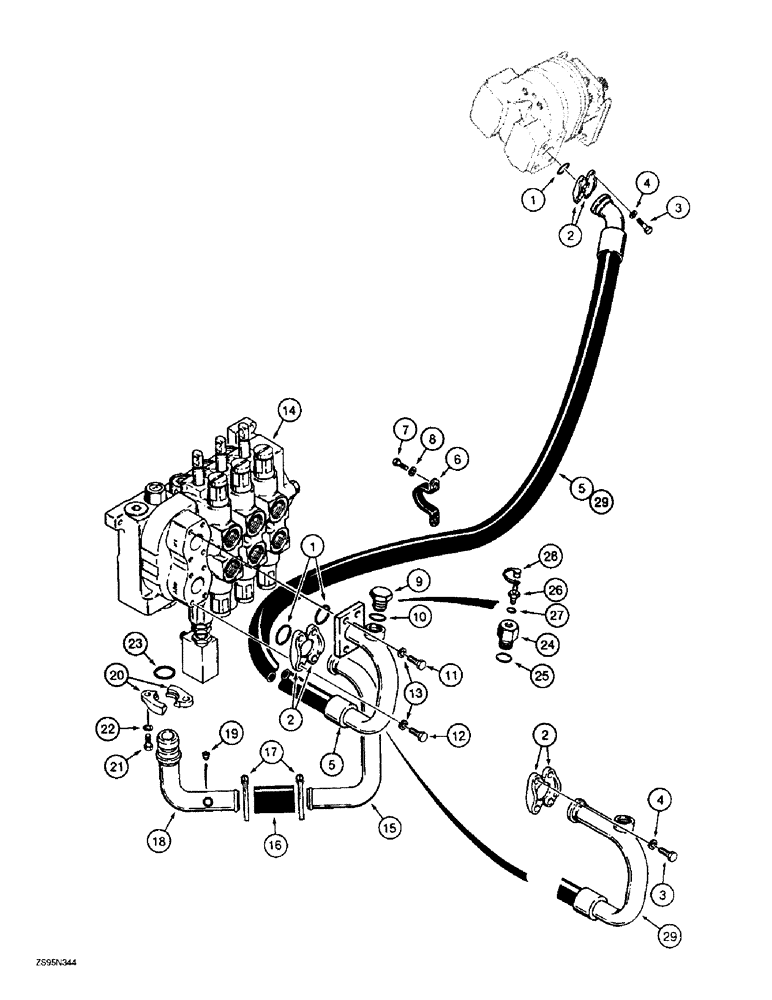

Запчасти Case 1150E (8-010) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESEVOIR (08) - HYDRAULICS

1

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

3шт.

2

A12301

CLAMP,Half

CLAMP - split flange

4-6шт.

3

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4-8шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

R54273

HOSE

- pump, 58-1/2 inch (1486 mm) long, to control valve, no longer used, order two A12301 clamps, four 413-724 bolts, and R57153 hose, Ref. 2, 3 & 29

1шт.

6

R54274

MOUNTING CLIP

CLAMP - hose

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

No longer used, replace with Ref. 24 - 28, Includes: Ref. 10 Hex Hd, 1 1/16"-12 ORB

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

11

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

if used, for R54273 hose, ref 5 Hex, 7/16"-14 x 2", G5

4шт.

12

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

13

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, equipment, for correct assembly and components, see Figures 8-106 through 8-114

1шт.

15

R40140

TUBE,1.5" OD

- control valve outlet

1шт.

16

R43918

HOSE

- 1-1/2 ID x 4-1/2 inch (114 mm) long, cut from R45924 bulk hose, see below

1шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj. 1.75/2.625 HD Worm, W/liner

2шт.

18

R51429

PIPE,38.1 mm OD x 114, 95 mm L

TUBE - return to hydraulic reservoir

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

20

R27612

CLAMP

- split flange

2шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

-325, 70 Duro, 1.475" ID x .210" Thk

1шт.

24

218-5316

ADAPTER

- straight, 3/4 PT x 1/4 inch female O-ring boss, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

R55912

NIPPLE

COUPLER - quick disconnect, diagnostic test point, Includes: Ref. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

28

H434163

DUST CAP

CAP - dust

1шт.

29

R57153

HOSE

- pump to control valve, for split flange

1шт.

R45924

HOSE

- 1-1/2 (38) ID x 9-1/2 inch (241 mm) long

1шт.
