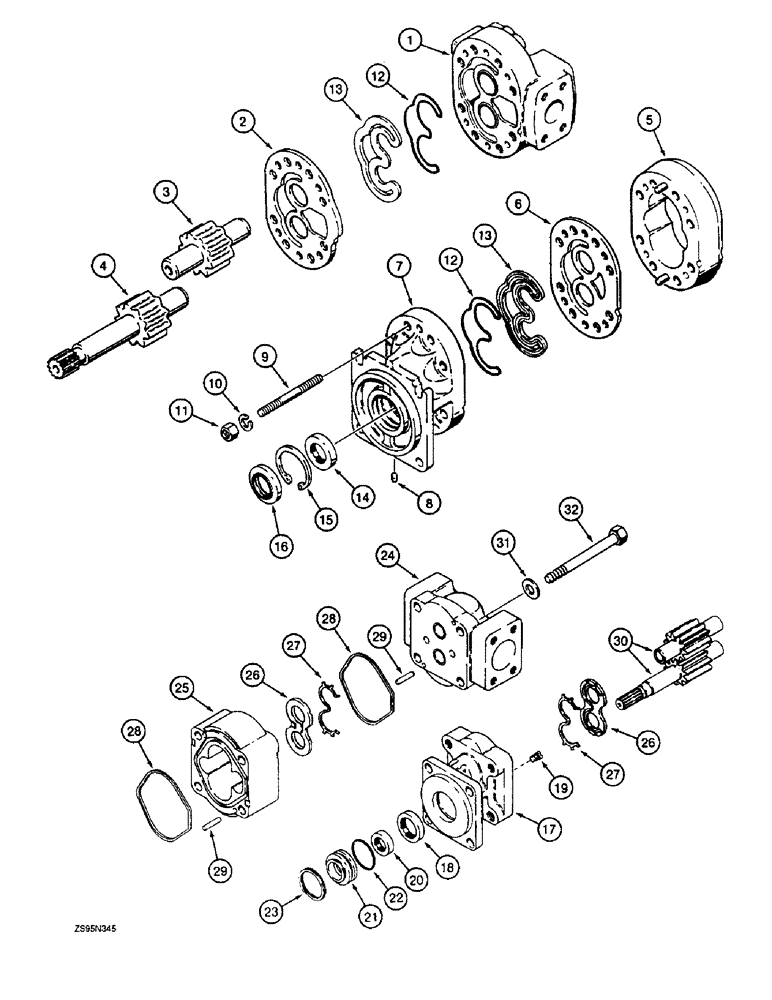

Запчасти Case 1150E (8-012) - EQUIPMENT HYDRAULIC PUMP ASSEMBLY, R56572 HYDRAULIC PUMP (1" SHAFT) (08) - HYDRAULICS

R56572

PUMP, HYDRAULIC,80.48 CC

ASSEMBLY - equipment, 1 inch shaft, part number stamped on port end cover, replaces R49408 pump assembly, used on dozer models prior to P.I.N. JAK0009017 and on all loader models, Includes: Ref. 1 - 16

1шт.

R56572R

REMAN-HYD PUMP

1150E, 1155E, Both CASE CRAWLER TRACTOR, ASSEMBLY, used on dozer models prior to P.I.N. JAK0009017 and on all loader models

1шт.

R56572C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300734

COVER

- port end

1шт.

2

N60191

PLATE

- wear, port end

1шт.

3

N60309

PINION

GEAR - driven

1шт.

4

N60312

PINION

GEAR - drive

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

6

N60187

PLATE

- wear, shaft end

1шт.

7

S300735

COVER

- shaft end

1шт.

8

N60210

PLUG

- driveshaft end cover

1шт.

9

N60313

STUD

- 4-1/4 inch (107 mm) long

8шт.

10

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

11

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.

12

N60195

SEAL

- wear plate

2шт.

13

N60194

RETAINER

- seal

2шт.

14

N60213

SEAL

- drive gear shaft, inner

1шт.

15

103-21200

SNAP RING,2", Int, #200

Ring, Snap, , Seal 2", Int, #200

1шт.

16

N60212

SEAL

SEAL ASSY - drive gear shaft, outer

1шт.

R58775

PUMP, HYDRAULIC

ASSEMBLY - equipment, 7/8 inch shaft, used on dozer models P.I.N. JAK0009017 and after, Includes: Ref. 17 - 32

1шт.

87604362R

REMAN-HYD PUMP

1150E, 1155E, Both used on dozer models P.I.N JAK0009017 and after, Reman for New PN R58775

1шт.

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

17

107611A1

COVER ASSY

- shaft end, R58775 pump (7/8" shaft)

1шт.

18

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- R58775 pump (7/8" shaft)

1шт.

19

L32320

PLUG

- slotted, 7/16 inch NF, R58775 pump (7/8" shaft)

4шт.

20

A24845

OIL SEAL

SEAL, OIL - R58775 pump (7/8" shaft)

1шт.

21

N13580

RETAINER

- seal, R58775 pump (7/8" shaft)

1шт.

22

238-5134

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

R58775 pump (7/8" shaft) -134, 70 Duro, 1.862" ID x .103" Thk

1шт.

23

102-23206

SNAP RING,#206, 2.190", Int, Spiral

RING - retaining, R58775 pump (7/8" shaft)

1шт.

24

107612A1

COVER ASSY

COVER - closed end, R58775 pump (7/8" shaft)

1шт.

25

N13581

HOUSING

gear, end, R58775 pump (7/8" shaft)

1шт.

26

N13582

THRUST PLATE

PLATE, THRUST, R58775 pump (7/8" shaft)

2шт.

27

N13583

SEAL

- gear housing, R58775 pump (7/8" shaft)

2шт.

28

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing, R58775 pump (7/8" shaft)

2шт.

29

W16323

DOWEL

PIN - gear housing, R58775 pump (7/8" shaft)

4шт.

30

107613A1

GEAR-SET

GEAR, set of two, shaft end, R58775 pump (7/8" shaft)

1шт.

31

19-488

WASHER

- flat, hardened, R58775 pump (7/8" shaft)

4шт.

32

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- hex, 5/8 NC x 5-1/4 inch, R58775 pump (7/8" shaft)

4шт.
