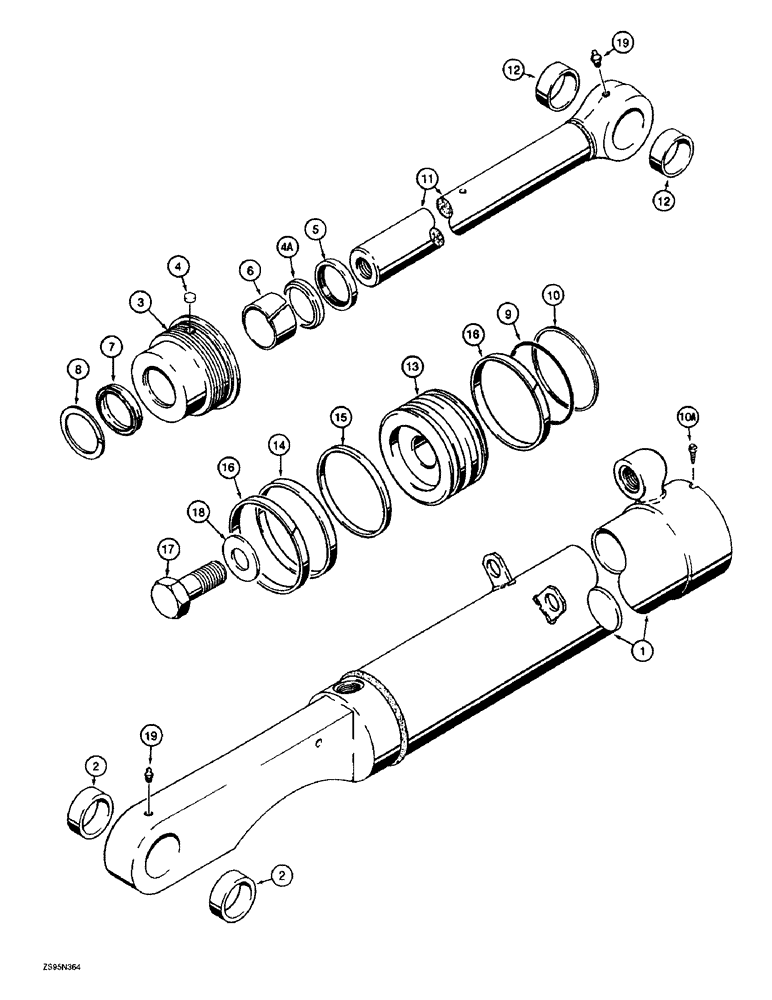

Запчасти Case 1150E (8-058) - G107039 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G107039

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, 4 (102) ID x 36-1/4 inch (921 mm) stroke, Includes: Ref. 1 - 19

2шт.

1

G107040

TUBE,4" DIA x 56.92" L

- cylinder

1шт.

2

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- 2 (51) ID x 7/8 inch (22 mm) long, tube

2шт.

3

1543019C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

4a

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, piston rod, narrow

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

9

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

11

G107046

PISTON ROD

ROD - piston, 2 inch diameter, Includes: Ref. 12

1шт.

12

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- 1 inch (25 mm) wide, piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543273C1

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N 1543273C1

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1543273C1

SEAL KIT

KIT - seal, includes Refs. 5 - 10 (except G100778), & 14 - 16

1шт.
