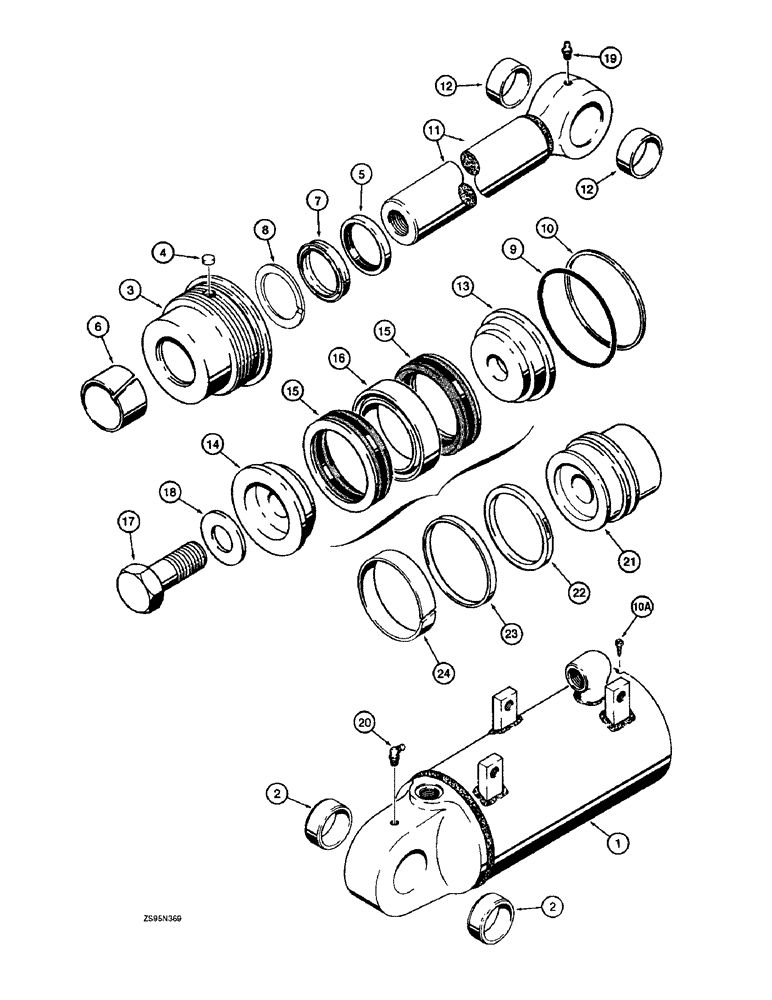

Запчасти Case 1150E (8-068) - G107405 AND 1986748C1 DOZER TILT CYLINDERS, LGP TILT DOZER MODELS (08) - HYDRAULICS

G107405

CYLINDER

ASSEMBLY - dozer tilt, 4-1/2 (114) ID x 5-1/4 inch (134 mm) stroke, with 2 piece piston, no longer used, order 1986748C1 cylinder assembly, Includes: Ref. 1 - 24

1шт.

1986748C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt, 4-1/2 (114) ID x 5-1/4 inch (133 mm) stroke, with 1 piece piston, Includes: Ref. 1 - 24

1шт.

1

G107406

TUBE

- cylinder, Includes: Ref. 2

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G104949

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105520

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N G105520

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G105520

1шт.

7

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G105520

1шт.

9

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Gland -246, 70 Duro, 4.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G105520

1шт.

10

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G105520

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted, If used

1шт.

11

G107410

PISTON

ROD - piston, 2-1/4 inch (57 mm) diameter, Includes: Ref. 12

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

D46425

PISTON

- split, rod end, G107405 cylinder

1шт.

14

D46931

PISTON

- split, bolt end, G107405 cylinder

1шт.

15

D47205

PACKING

- piston, for Ref. 13 & 14 split pistons

2шт.

Part of Seal Kit, P/N G105520

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - wear, packing, for Ref. 13 & 14 split pistons

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

21

1986543C1

PISTON

- cylinder, 1 piece, for 1986748C1 cylinder

1шт.

22

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- piston, for ref 21 piston and 1986748C1 cylinder

1шт.

23

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - backup, for ref 21 piston and 1986748C1 cylinder

1шт.

24

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, for ref 21 piston and 1986748C1 cylinder

1шт.

G105520

GASKET KIT

KIT - seal, includes Refs. 5 - 10 (except G100779), & 15

1шт.
