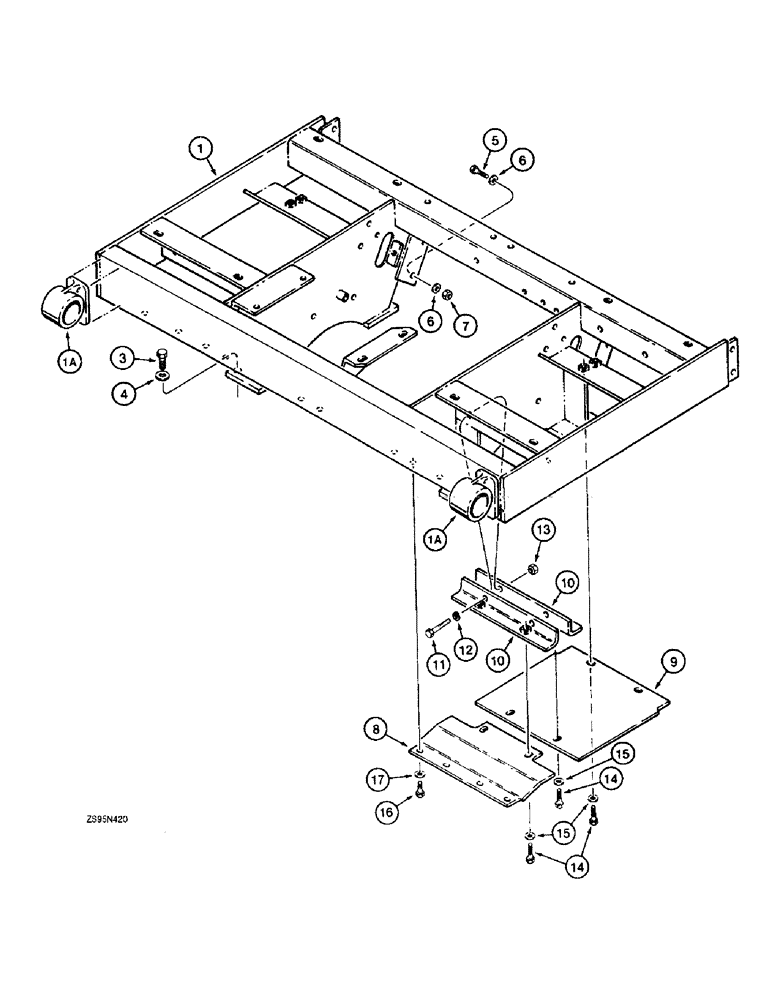

Запчасти Case 1150E (9-046) - SEAT AND RESERVOIRS FRAME AND GUARDS (09) - CHASSIS/ATTACHMENTS

1

R49883

FRAME

- seat and reservoirs, Includes: Ref. 1A

1шт.

1a

R39921

BRACKET

BASE - ROPS mounting

2шт.

3

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8, use with Loctite 242

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened

8шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

6шт.

6

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

12шт.

7

425-1010

NUT,5/8"-11, G5

6шт.

8

R46330

COVER

GUARD - rear, left-hand and right-hand

2шт.

9

R46346

COVER

GUARD - front, left-hand and right-hand

2шт.

10

R46325

ANGLE BAR

BRACKET - guard mounting

4шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

15

R24718

WASHER

- flat, hardened, special

12шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

8шт.
