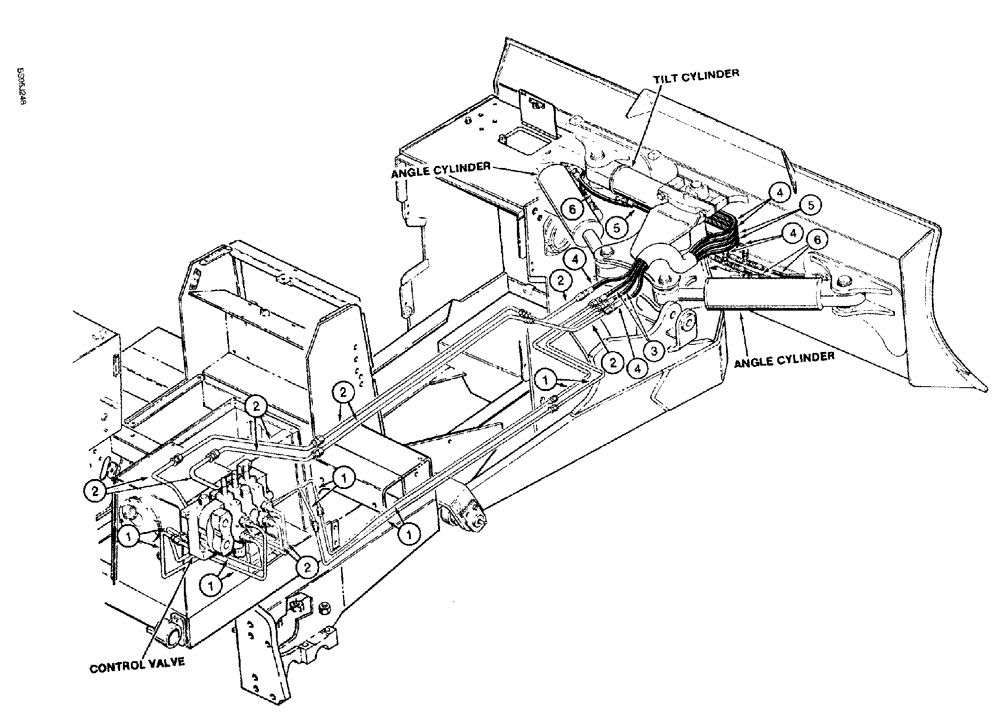

(1-014) - PICTORAL INDEX - TILT AND ANGLE HYDRAULIC CIRCUITS

Запчасти Case 1150G (1-014) - PICTORAL INDEX - TILT AND ANGLE HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

Схема запчастей Case 1150G - (1-014) - PICTORAL INDEX - TILT AND ANGLE HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX
1
4
6
6
5
1
1
2
2
2
3
1
4
2
2
1
2
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Tilt tubes from control valve to grille, Page 8-17, 8-19

1шт.

2

Angle tubes from control valve to grille, Page 8-23, 8-23B

1шт.

3

Tilt hoses from grille to blade, Page 8-21, 8-21B

1шт.

4

Angle hoses from grille to blade, Page 8-21, 8-21B

1шт.

5

Tilt hoses to cylinder, Page 8-21, 8-21B

1шт.

6

Angle hoses to cylinders, Page 8-21, 821B

1шт.
