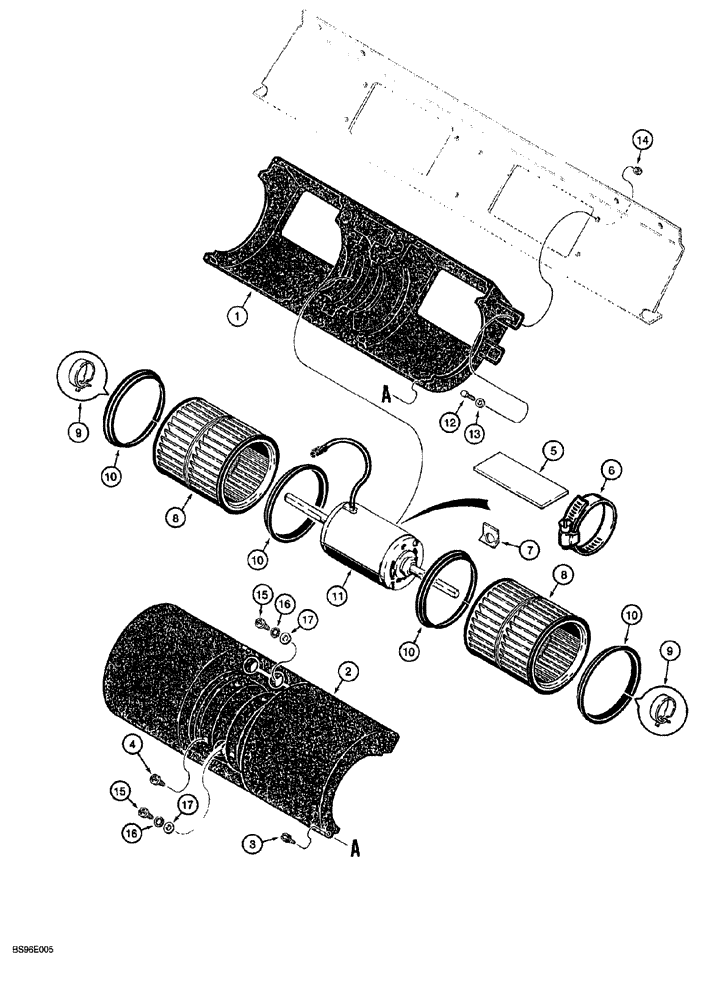

Запчасти Case 1150G (4-040) - AIR CONDITIONING CONDENSER BLOWER, ABOVE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1999670C1

BLOWER ASSY.

air conditioning condenser, 24 volt, not available as an assembly, order component parts separately, Includes: Ref. 1 - 11

2шт.

1

F64740

HOUSING

fan, lower

1шт.

2

F64741

HOUSING

fan, upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Fan housings, outer ends

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan head Phillips, No. 10-16 x 1 inch, fan housings, center

4шт.

5

1999608C1

GASKET

1 x 4 x 1/16 inch, motor mount

2шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj., 2 - 1/16 - 3 inch dia., around motor

1шт.

7

R51563

CLIP,ELECTRICAL

motor retaining clamp

1шт.

8

F64935

BLOWER,Fan

FAN blower, condenser

2шт.

9

F64936

CLAMP

steel spring, fan retaining

2шт.

10

F64739

RING

plastic, fan retaining

4шт.

11

1546448C1

MOTOR, ELECTRIC

blower, 24 volt

1шт.

11

370512A1R

REMAN-ELECTRIC MOTOR

1150G, Reman For New P/N 1546448C1

1шт.

11

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

12

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

8шт.

13

495-31022

WASHER,#10

8шт.

14

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC

8шт.

15

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

2шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

495-31022

WASHER,#10

2шт.
