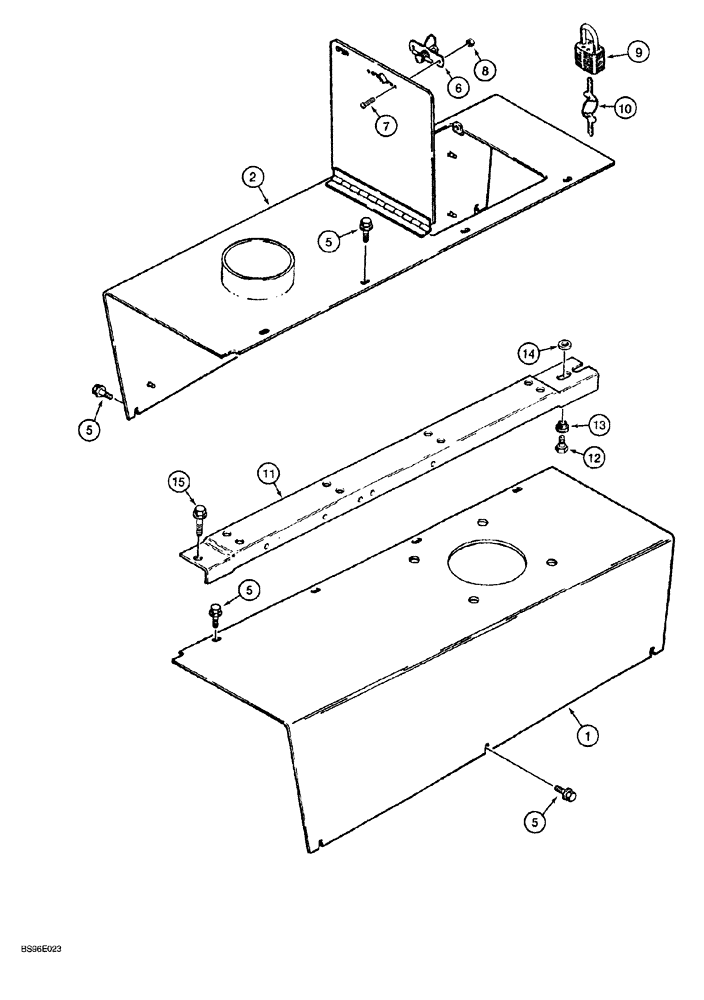

Запчасти Case 1150G (9-030) - HOOD (05) - UPPERSTRUCTURE CHASSIS

1

182254A1

HOOD

right-hand, prior to JJG0218023 and JJG0218024 - JJG021847

1шт.

1

241112A1

HOOD

right-hand, JJG0218023 and JJG0218475 and after

1шт.

2

R57677

HOOD

left-hand, prior to JJG0218023 and JJG0218024 - JJG0218474

1шт.

2

241111A1

HOOD

left-hand, JJG0218023 and JJG0218475 and after

1шт.

5

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

14шт.

6

L102515

LATCH

fastener, access door, air cleaner

1шт.

7

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

2шт.

9

D93753

PADLOCK

includes keys, Includes: Ref. 10

1шт.

10

R29555

KEY

for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

11

R56938

ANGLE

BRACKET center, hood mounting, prior to JJG0218023 and JJG0218024 - JJG0218475, no longer available, order 241709A1

1шт.

11

241709A1

ANGLE

BRACKET center, hood mounting, JJG0218023 and JJG0218475 and after

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Use with blue Loctite No. 242, Shown below

2шт.

13

R54996

SPACER

bracket mounting

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

15

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Use with blue Loctite No. 242, shown below

1шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube, not shown

1шт.
