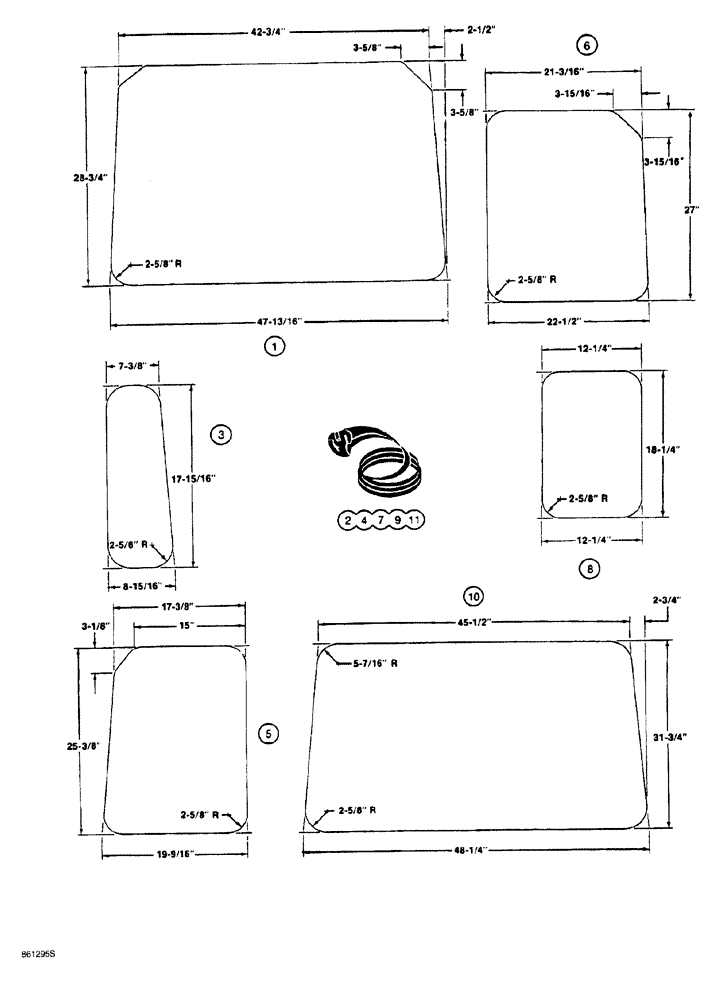

Запчасти Case 1150G (9-054) - ROPS CAB GLASS, U.S. DIMENSIONS (05) - UPPERSTRUCTURE CHASSIS

1

R53195

GLASS front windshield

1шт.

2

R51888

SEAL, 3610 mm (142-1/8 inch) long, cut from S118468X bulk seal, front windshield glass, see below

1шт.

3

R53209

GLASS lower front

2шт.

4

R51351

HOUSING

SEAL, 1270 mm (50 inch) long, cut from S118468X bulk seal, lower front glass, see below

2шт.

5

R53196

GLASS upper door windows

2шт.

6

R53198

GLASS rear side windows

2шт.

7

R51706

SEAL, 2419 mm (95-1/4 inch) long, cut from S118468X bulk seal, upper door window glass and rear side window glass, see below

4шт.

8

R53197

GLASS lower door windows

2шт.

9

R51707

SEAL, 1565 mm (61-5/8 inch) long, cut from S118468X bulk seal, lower door glass, see below

2шт.

10

R53199

GLASS rear window

1шт.

11

R51709

SEAL, 4056 mm (159-11/16 inch) long, cut from S118468X bulk seal, rear window glass, see below

1шт.

S118468X

SEAL

bulk, 15240 mm (600 inch) long

1шт.
