(9-058) - CAB AIR FILTER AND HEADLINERS

Запчасти Case 1150G (9-058) - CAB AIR FILTER AND HEADLINERS (05) - UPPERSTRUCTURE CHASSIS

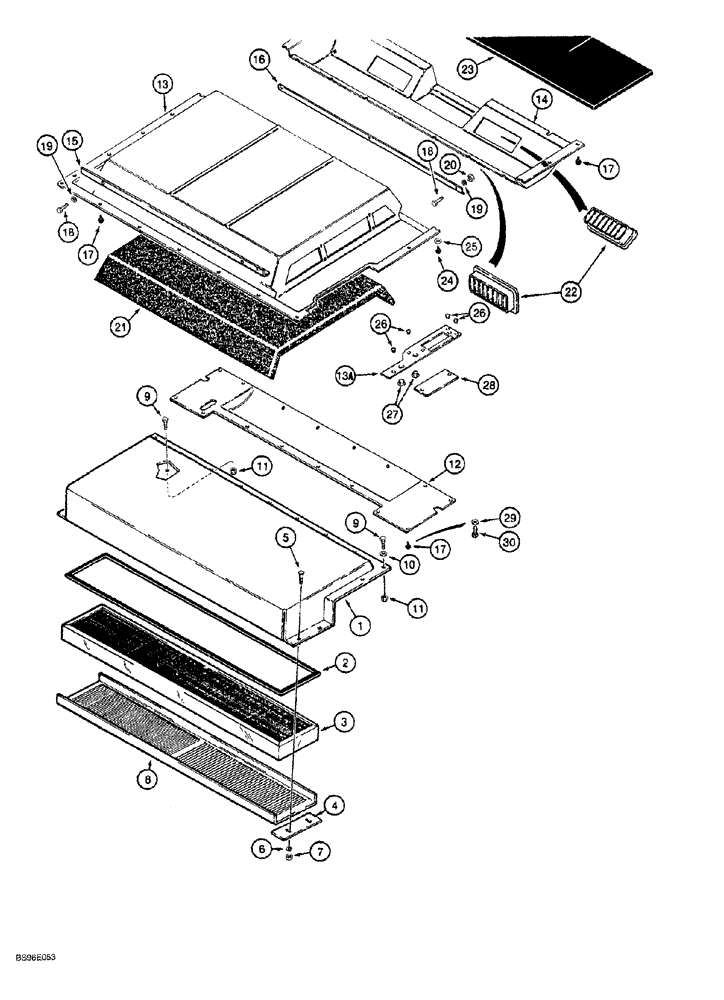

Схема запчастей Case 1150G - (9-058) - CAB AIR FILTER AND HEADLINERS (05) - UPPERSTRUCTURE CHASSIS
12
28
29
18
13a
7
11
26
27
26
24
1
30
20
25
2
16
13
11
21
10
19
23
14
9
17
4
3
17
9
17
15
8
19
5
22
6
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

189640A1

HOUSING

filter

1шт.

2

F63669

SEAL

rubber, housing

1шт.

3

F64318

AIR FILTER

FILTER

1шт.

4

195544A1

PLATE

retainer, filter

2шт.

5

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT carriage, 1/4 NC x 1 inch, grade 2

4шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

231-1444

NUT,1/4"-20, GB

4шт.

8

189641A1

PANEL

LOUVER filter, Replaces: R46136

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

10

F42778

WASHER

special

11шт.

11

231-1445

NUT,5/16"-18, GB

13шт.

12

187467A1

ROOF

HEADLINER rear, blower cover

1шт.

13

187461A1

ROOF

HEADLINER center

1шт.

13a

1999698C1

CLAMP

headliner

1шт.

14

192487A1

ROOF LINING

HEADLINER front

1шт.

15

R51723

ANGLE BAR

BRACKET rear, headliner support

1шт.

16

R52822

ANGLE

BRACKET front, headliner support

1шт.

17

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch, no longer available, order (1) each of Ref.29, F64315 and Ref. 30, 265-16512

35шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

19

492-11025

LOCK WASHER,1/4"

5шт.

20

425-104

NUT,1/4"-20, Cl 5

3шт.

21

187468A1

PADDING

center headliner, vinyl-covered, attach with 345-41 cement, see below

1шт.

22

L109555

GUARD

LOUVER headliner, front

6шт.

23

R51916

FOAM

PAD, 13 (1/2) x 265 (10-7/16) x 1260 mm (49-5/8 inch) long, attach to underside of roof above heater and air conditioning cores, attach with 345-41 cement, see below

1шт.

24

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

9шт.

25

195-81026

WASHER,.266" x 13/16" x .079"

flat, 17/64 x 13/16 x 3/32 inch

9шт.

26

353-421

PLUG,Dome, .187" hole, Nylon

Used on models without air conditioning

4шт.

27

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, used on models without air conditioning

2шт.

28

1999420C1

COVER

fuse block, see Figure 4-024 for fuse block and mounting hardware

1шт.

29

F64315

WASHER

special

35шт.

30

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, oval Phillips, No. 10-16 x 3/4 inch

35шт.

345-41

ADHESIVE

CEMENT contact, yellow, 1 pint

1шт.
